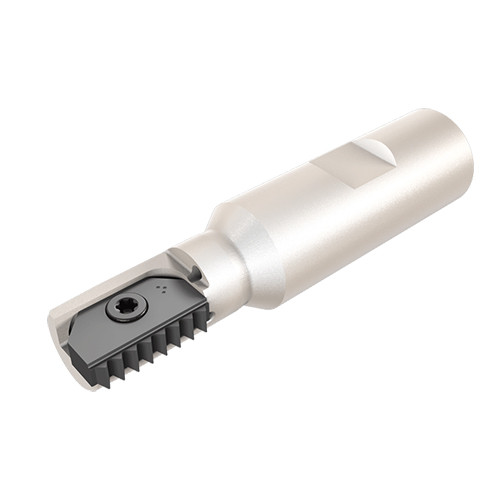

MTE D0.94-1-W0.75-21
Indexable threading endmills with Weldon shank and coolant holes.

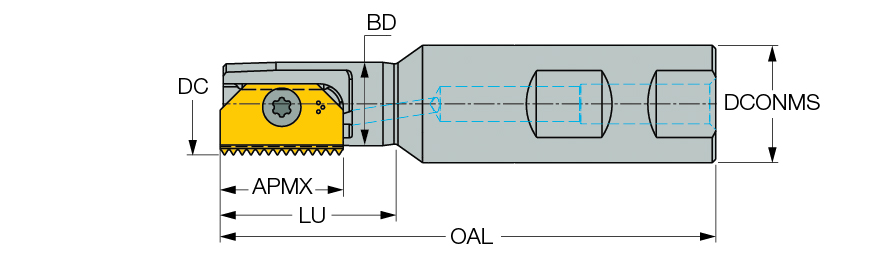

| Cutting Diameter (DC) | 0.94″ | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Application | | External Thread Milling | Internal Thread Milling | |
| Depth of Cut Maximum (APMX) | 0.827″ | Tool Type | Indexable thread mills |
| Overall Length (OAL) | 5″ | Measurement Type | Inch |
| Flute Count (NOF) | 1 | Connection Code Machine Side (CCMS) | Weldon |
| Usable Length (LU) | 2.83″ | Body Diameter (BD) | 0″ |
| Shank Type | Weldon | Unit | I |
| Body Material | Steel |
Product Features
| Family Description | Indexable threading endmills with Weldon shank and coolant holes. | COO | Israel |
| Remarks | Tool cutting diameter should not exceed 2/3 of thread bore diameter All endmills are equipped with a bore for internal coolant |
Shipping Info
Weight per item
0.7915
