MTE D09.9-1-C08C-12

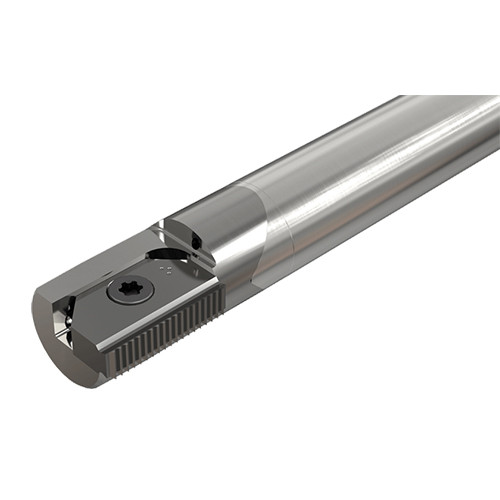

Indexable threading endmills with long cylindrical carbide shanks and coolant holes.
| Cutting Diameter (DC) | 9.9 mm | Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Application | | External Thread Milling | Internal Thread Milling | |
| Depth of Cut Maximum (APMX) | 12 mm | Tool Type | Indexable thread mills |
| Overall Length (OAL) | 127 mm | Measurement Type | Metric |
| Flute Count (NOF) | 1 | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Type | Round | Unit | M |
| Body Material | Steel |
Product Features
| Family Description | Indexable threading endmills with long cylindrical carbide shanks and coolant holes. | COO | Israel |
| Remarks | For holders with a long overhang, reduce the cutting speed and feed rate, between 20 to 40% (depending on workpiece, material, pitch and overhang) |
Shipping Info
Weight per item
0.1510
Related Documentation
Minimum bore should be one-third larger than D. All endmills are equipped with a bore for coolant through.
