MTSR 0035 R16U

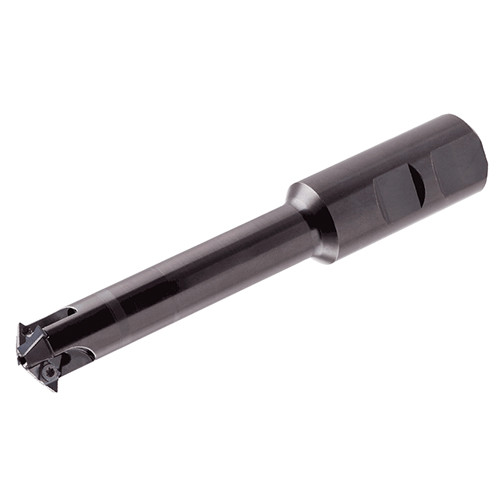

Indexable multi-insert threading endmills with Weldon shanks for single point U-type inserts.

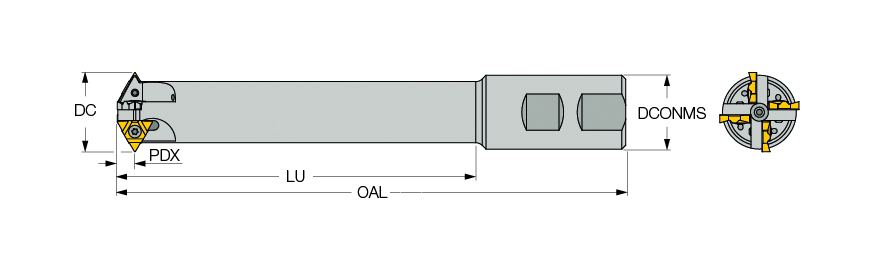

| Cutting Diameter (DC) | 35.5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Application | | External Thread Milling | Internal Thread Milling | |
| Overall Length (OAL) | 220 mm | Tool Type | Indexable thread mills |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Usable Length (LU) | 155 mm | Thread Type (TTP_DF2) | INT |
| Shank Type | Weldon | Unit | M |
| Body Material | Steel |
Product Features
| Family Description | Indexable multi-insert threading endmills with Weldon shanks for single point U-type inserts. | COO | Israel |
| Remarks | Minimum bore should be one-third larger than D |
Shipping Info
Weight per item
0.9810
