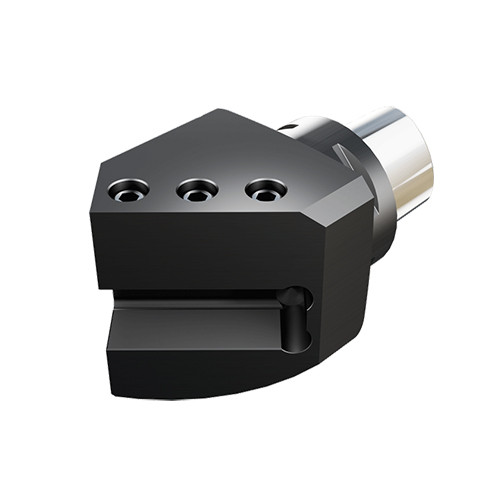

C6 ASHR 20-45
Holders with CAMFIX (ISO 26623-1 standard) shanks, carrying square shank tools for 45° mounting on turn-mill machines.

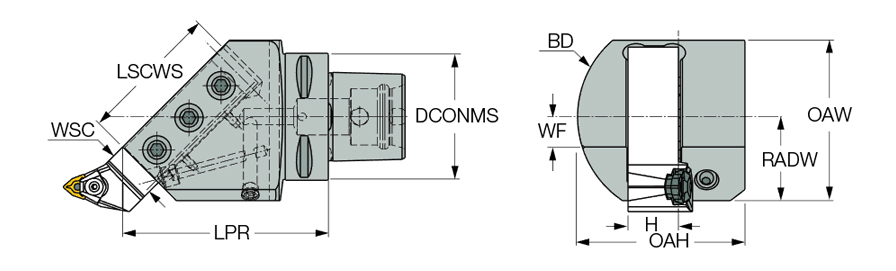

| Protruding Length (LPR) | 98.3 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Overall Height (OAH) | 62 mm |
| Shank Size (SS) | 63 | Overall Length (OAL) | 140 mm |
| Tool Type | ISO 26623-1 (CAMFIX, CAPTO) | Unit | M |
| Measurement Type | Metric | Overall Width (OAW) | 67.5 mm |
Product Features
| Family Description | Holders with CAMFIX (ISO 26623-1 standard) shanks, carrying square shank tools for 45° mounting on turn-mill machines. | FamilyName | C#-ASHR/L-45 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
2.1180
Name
Adapters
FamilyName
C#-ASHR/L-45
BrandName
Iscar
