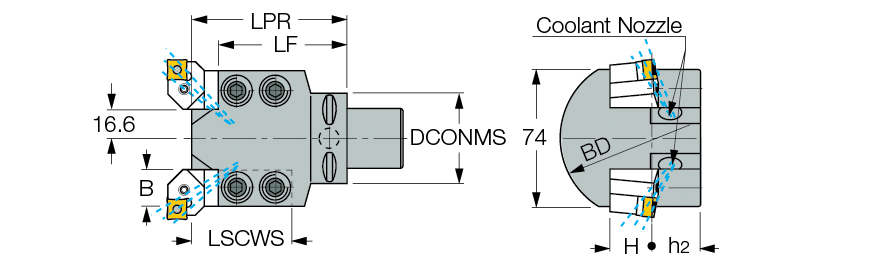

| Protruding Length (LPR) | 85 mm | Shank Size (SS) | 40 |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Clamping Length Workpiece Side (LSCWS) | 54 mm | Measurement Type | Metric |
| Shank Height (H) | 20 mm | Body Material | Steel |
| Body Diameter (BD) | 90 mm | Overall Length (OAL) | 109 mm |
| Body Length (LB) | 71 mm | Unit | M |
Product Features

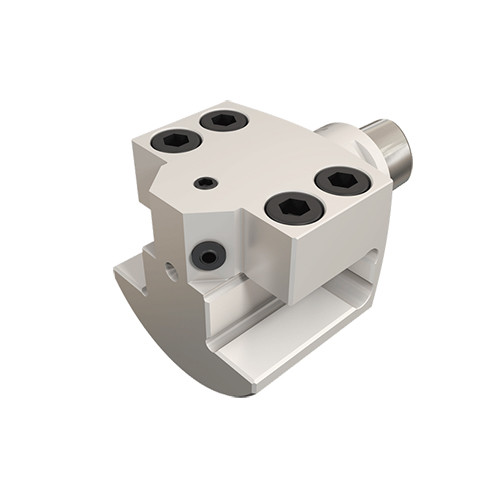

| Family Description | Holders with CAMFIX (ISO 26623-1 standard) exchangeable shanks for external square shank tools. | FamilyName | C#-ADES |
| Remarks | Use the tools with AD suffix. Regular tools should be shortened. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
2.0900
Name
Adapters
FamilyName
C#-ADES
BrandName
Iscar
