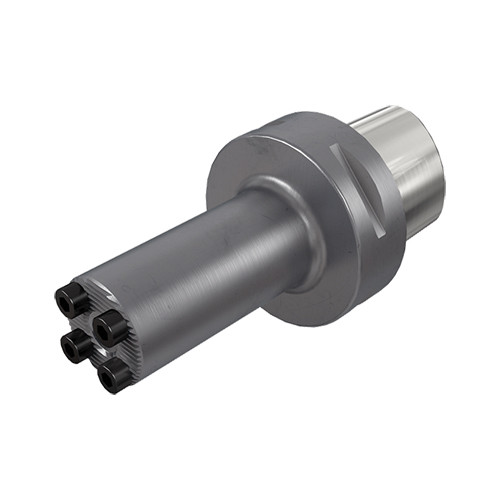

C4-SH-D20-2.5D-JHP
Serrated connection shanks with a CAMFIX exchangeable adaptation.

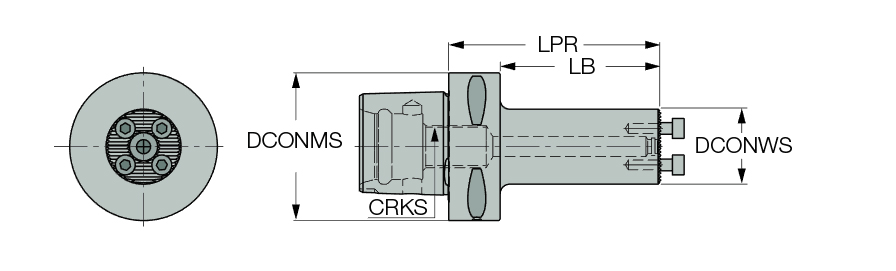

| Connection Diameter Machine Side (DCONMS) | 40 mm | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 20 mm | Body Material | Steel |
| Tool Type | ISO 26623-1 (CAMFIX, CAPTO) | Unit | M |
Product Features
| Family Description | Serrated connection shanks with a CAMFIX exchangeable adaptation. | FamilyName | C#-SH-JHP |
| Remarks | Suitable for MULTI-TASKING machines only | BrandName | Iscar |
| COO | Switzerland |
Shipping Info
Weight per item
0.3350
Name
Adapters
FamilyName
C#-SH-JHP
BrandName
Iscar
