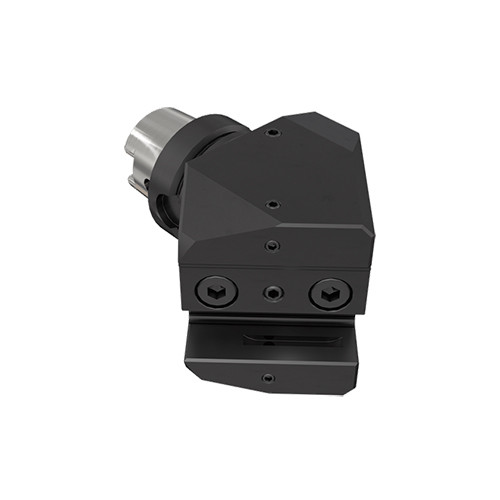

HSK A63TM ASHN 25 45 HPMC
Square shank tool adapters with HSK exchangeable shanks for 45° mounting on multi-tasking machines with a bottom fed high pressure coolant channels (JHP-MC). (right-or-left hand tools can be used).

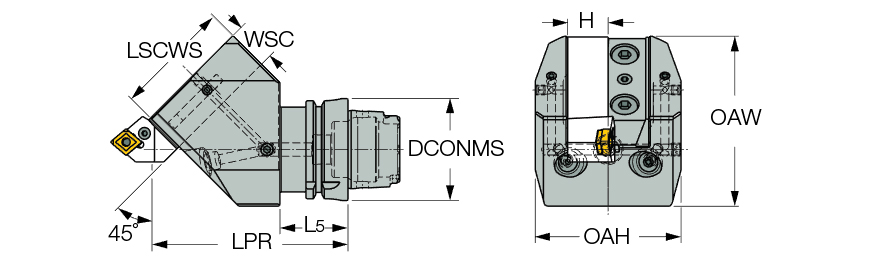

| Protruding Length (LPR) | 121 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Body Material | Steel |
| Shank Width (B) | 25 mm | Overall Height (OAH) | 90 mm |
| Shank Height (H) | 25 mm | Overall Length (OAL) | 142 mm |
| Body Length (LB) | 42 mm | Unit | M |
| Shank Size (SS) | 63 | Overall Width (OAW) | 105 mm |

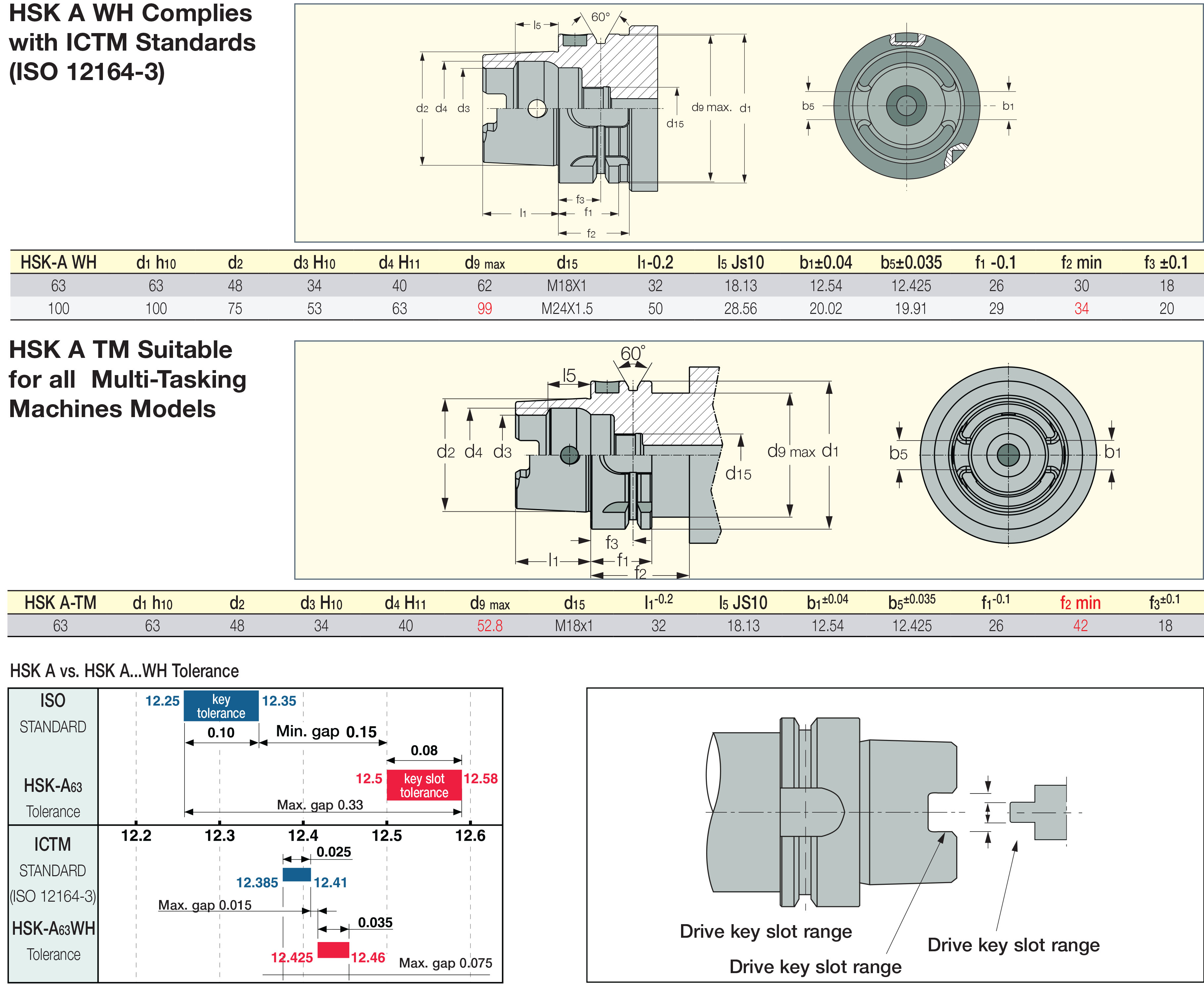

| Tool Type | HSK -T (ISO 12164-3) |
Product Features
| Family Description | Square shank tool adapters with HSK exchangeable shanks for 45° mounting on multi-tasking machines with a bottom fed high pressure coolant channels (JHP-MC). (right-or-left hand tools can be used). | FamilyName | HSK A63TM-ASHN-45-HPMC |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) For using left-hand toolholder, the position of the clamping spacer must be changed For shank dimensions, click on More Info | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
4.0550
Name
Adapters
FamilyName
HSK A63TM-ASHN-45-HPMC
BrandName
Iscar
