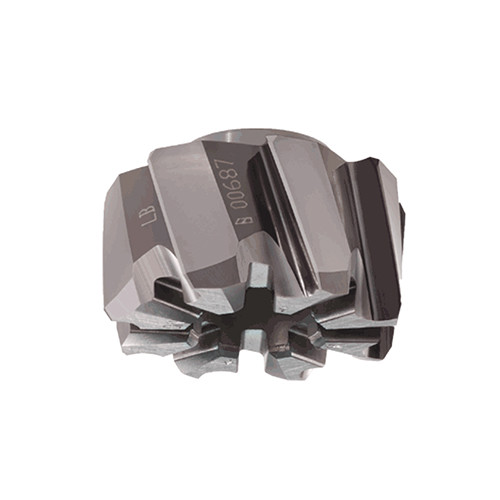

RM-BN7-0.7500-H7LB IC908
Interchangeable left-hand flute solid carbide reaming heads (shell reamers) with a quick change bayonet mechanism for H7 hole tolerance high speed reaming through holes.

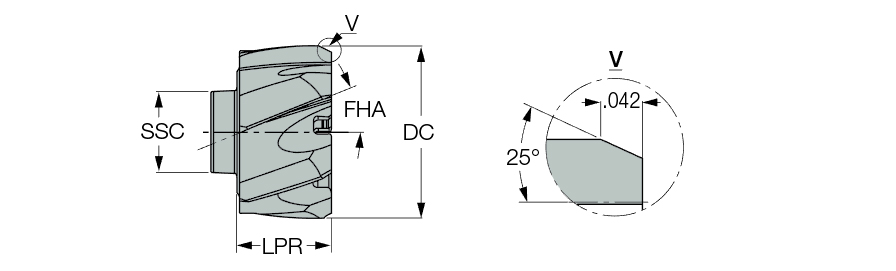

| Cutting Diameter (DC) | 3/4″ | Coating | TiAlN |
| Cutting Edge Length (L) | 0.421″ | Cutting Direction (HAND) | Right Hand |
| Insert Seat Size Code (SSC) | BN7 | Tool Type | Shell Reamers / BAYO Heads |
| Flute Count (NOF) | 6 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 20 Degrees | Grade | IC908 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Body Material | Carbide |
| Application | | Stacked Plates | Through & Axial Groove | Through & Perpendicular Holes | Through & Radial Groove | Through Hole | | Unit | I |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Interchangeable left-hand flute solid carbide reaming heads (shell reamers) with a quick change bayonet mechanism for H7 hole tolerance high speed reaming through holes. | COO | Israel |

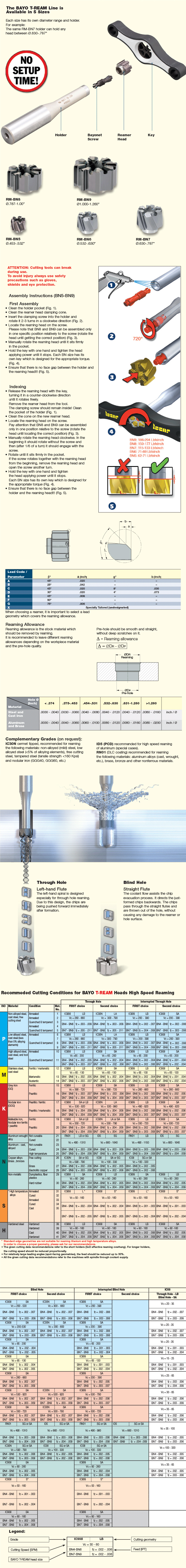

| Remarks | For user guide, click on More Info |
Shipping Info
Weight per item
0.0970
