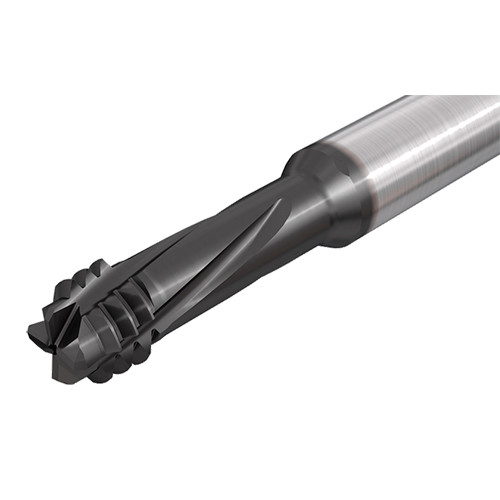

MTECD 08078D23 1.5ISO IC908
Small diameter short left-hand cut (CNC code M04) solid carbide internal ISO profile drilling threading and chamfering endmills. High cutting speeds, low cutting forces due to the short contact resulting in accurate and parallel thread.

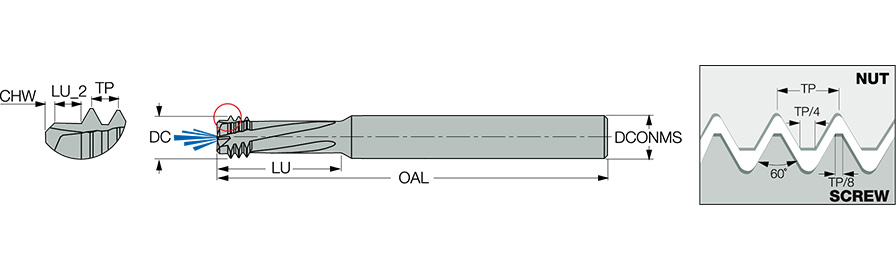

| Thread Size | M10-M15 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 1.5 mm | Cutting Edge Material | Carbide |
| Thread Standard | THFT | | Usable Length (LU) | 23 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Measurement Type | Metric |
| Cutting Diameter (DC) | 7.8 mm | Grade | IC908 |
| Overall Length (OAL) | 64 mm | Tool Type | Solid carbide thread mills |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Coolant Supply Property (CSP) | Coolant Thru | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Type | Round | Thread Form Type (THFT) | M60 |
| Coating | TiAlN | Unit | M |
| Application | | Drilling | Internal Thread Milling | |
Product Features
| Family Description | Small diameter short left-hand cut (CNC code M04) solid carbide internal ISO profile drilling threading and chamfering endmills. High cutting speeds, low cutting forces due to the short contact resulting in accurate and parallel thread. | COO | Israel |
| Remarks | Thread hole, thread and chamfer by circular interpolation |
Shipping Info
Weight per item
0.0410
