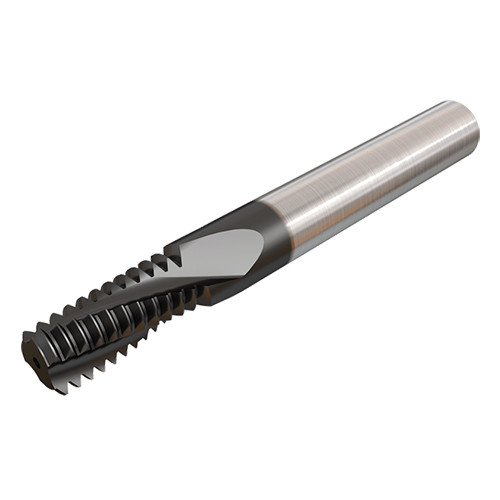

MTECB 1212D20 18PG IC908
Solid carbide threading endmills with a coolant hole for external and internal PG full profile (DIN 40430) used for electrical connectors.

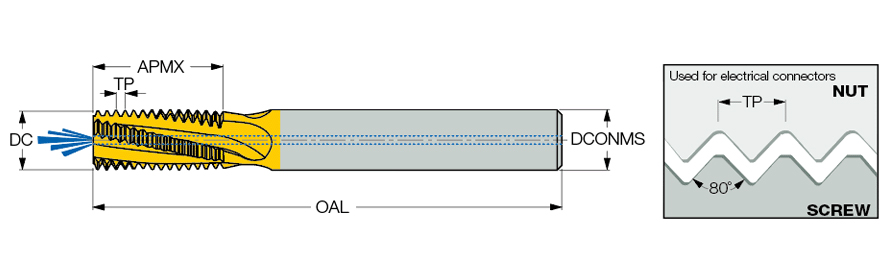

| Thread Size | Pg 9, 11, 13.5, 16 | Application | | External Thread Milling | Internal Thread Milling | |
| Thread Pitch (TP) | 1.411 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 18 | Cutting Edge Material | Carbide |
| Thread Standard | THFT | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Grade | IC908 |
| Cutting Diameter (DC) | 12 mm | Tool Type | Solid carbide thread mills |
| Overall Length (OAL) | 84 mm | Depth of Cut Maximum (APMX) | 20.5 mm |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Coolant Supply Property (CSP) | Coolant Thru | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Type | Round | Thread Form Type (THFT) | PG |
| Coating | TiAlN | Unit | M |
Product Features
| Family Description | Solid carbide threading endmills with a coolant hole for external and internal PG full profile (DIN 40430) used for electrical connectors. | COO | Israel |
| Remarks | Internal & External tolerance: DIN 40430 - Standard PG |
Shipping Info
Weight per item
0.1300
