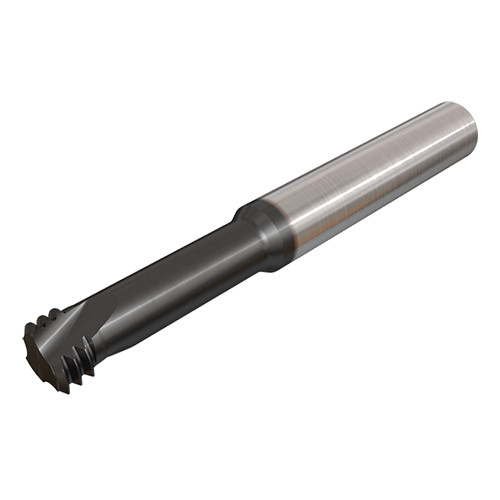

MTECSH 06021C6 40UN IC903
Small diameter short left-hand (CNC code M04) solid carbide UN profile threading endmills. Used for hardened steel. High cutting speeds, low cutting forces due to the short threading contact resulting in accurate and parallel thread.

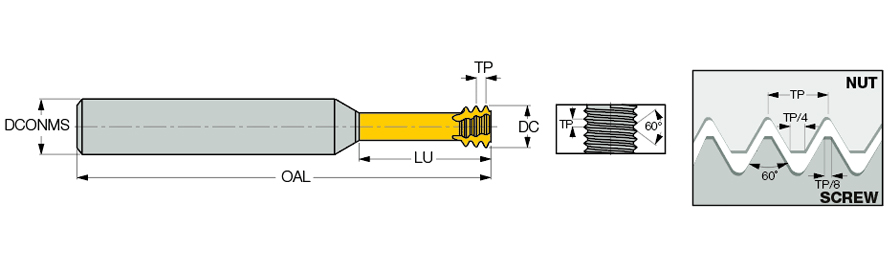

| Thread Size | 4 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 0.635 mm | Cutting Edge Material | Carbide |
| Threads per Inch (TPI) | 40 | Usable Length (LU) | 6.3 mm |
| Thread Standard | UNC |THFT | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Grade | IC903 |
| Cutting Diameter (DC) | 2.1 mm | Tool Type | Solid carbide thread mills |
| Overall Length (OAL) | 58 mm | Body Material | Carbide |
| Flute Count (NOF) | 3 | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Type | Round | Thread Form Type (THFT) | UN60 |
| Coating | AlTiN | Unit | M |
| Application | | Internal Thread Milling | |
Product Features
| Family Description | Small diameter short left-hand (CNC code M04) solid carbide UN profile threading endmills. Used for hardened steel. High cutting speeds, low cutting forces due to the short threading contact resulting in accurate and parallel thread. | COO | Israel |
Shipping Info
Weight per item
0.0280
