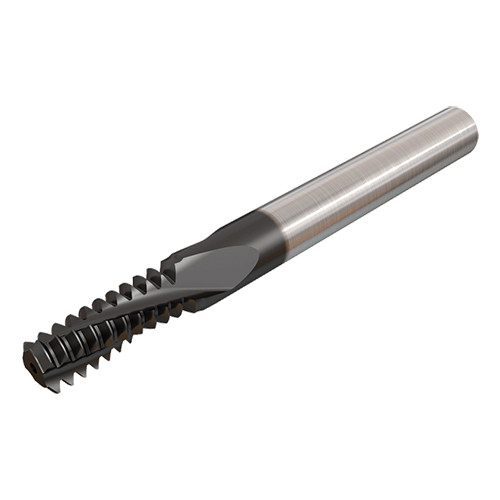

MTECB 12114C28 11UN IC908
Solid carbide threading endmills with coolant hole for internal UN thread profile.
| Thread Size | 5/8 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 2.309 mm | Flute Helix Angle (FHA) | 15 Degrees |
| Threads per Inch (TPI) | 11 | Cutting Edge Material | Carbide |
| Thread Standard | UNC |THFT | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Grade | IC908 |
| Cutting Diameter (DC) | 11.4 mm | Tool Type | Solid carbide thread mills |
| Overall Length (OAL) | 84 mm | Depth of Cut Maximum (APMX) | 28.9 mm |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Coolant Supply Property (CSP) | Coolant Thru | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Type | Round | Thread Form Type (THFT) | UN60 |
| Coating | TiAlN | Unit | M |
| Application | | Internal Thread Milling | |
Product Features
| Family Description | Solid carbide threading endmills with coolant hole for internal UN thread profile. | COO | Israel |
Shipping Info
Weight per item
0.0360
