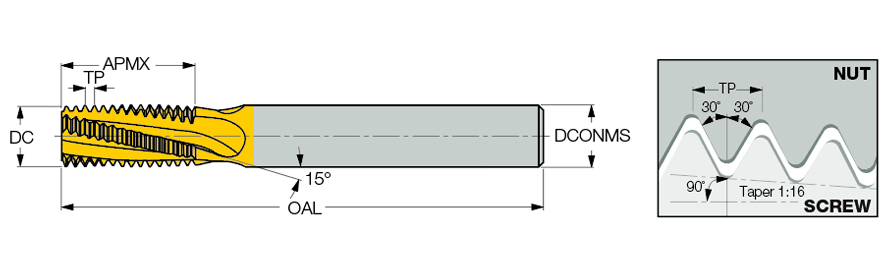

| Threads per Inch (TPI) | 11.5 | Flute Helix Angle (FHA) | 15 Degrees |
| Thread Standard | NPT | | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Measurement Type | Inch |
| Cutting Diameter (DC) | 0.62″ | Grade | IC908 |

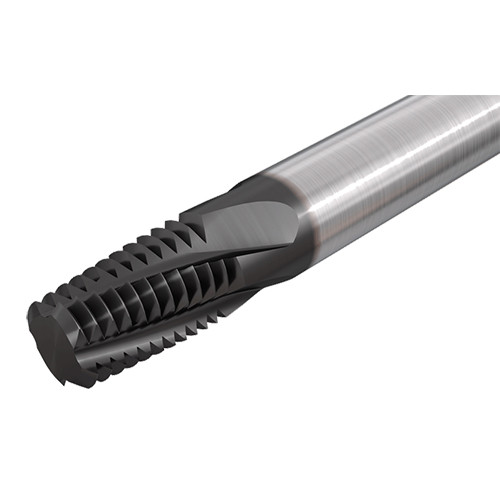

| Overall Length (OAL) | 4″ | Tool Type | Solid carbide thread mills |
| Flute Count (NOF) | 4 | Depth of Cut Maximum (APMX) | 1.1″ |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | External Thread Milling | Internal Thread Milling | | Thread Form Type (THFT) | NPT60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | I |
Product Features
| Family Description | Solid carbide threading endmills for an external or internal NPT thread profile. | COO | Israel |
| Remarks | Internal & External tolerance: ANSI/ASME B1.20.1 - Standard NPT |
Shipping Info
Weight per item
0.5754
