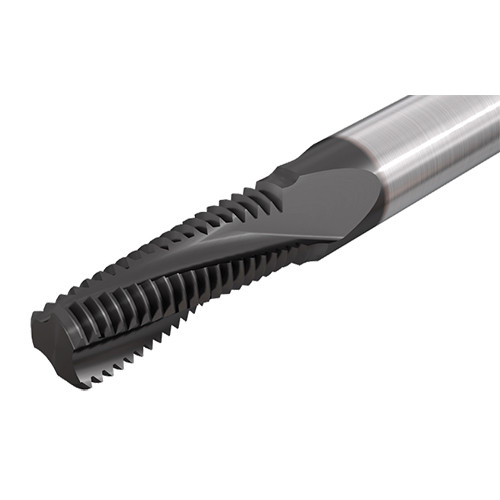

MTEC 06032C6 32UN IC908
Solid carbide threading endmills used for internal UN thread profile.

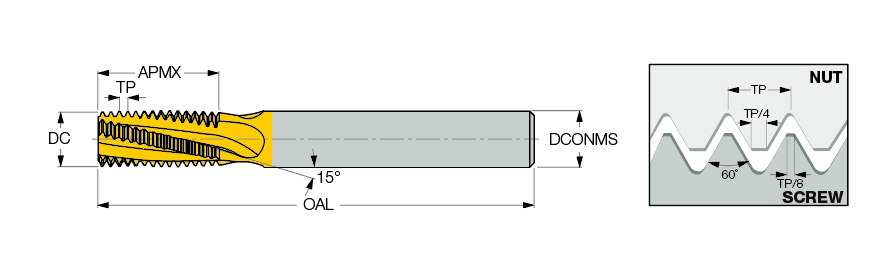

| Thread Size | 8 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 0.794 mm | Flute Helix Angle (FHA) | 15 Degrees |
| Threads per Inch (TPI) | 32 | Cutting Edge Material | Carbide |
| Thread Standard | UNC |UNF |UNEF |THFT | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Grade | IC908 |
| Cutting Diameter (DC) | 3.2 mm | Tool Type | Solid carbide thread mills |
| Overall Length (OAL) | 57 mm | Depth of Cut Maximum (APMX) | 6.8 mm |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Coating | TiAlN | Thread Form Type (THFT) | UN60 |
| Application | | Internal Thread Milling | | Unit | M |
Product Features
| Family Description | Solid carbide threading endmills used for internal UN thread profile. | COO | Israel |
Shipping Info
Weight per item
0.0240
