MTECI 03011C5 0.3ISO IC902

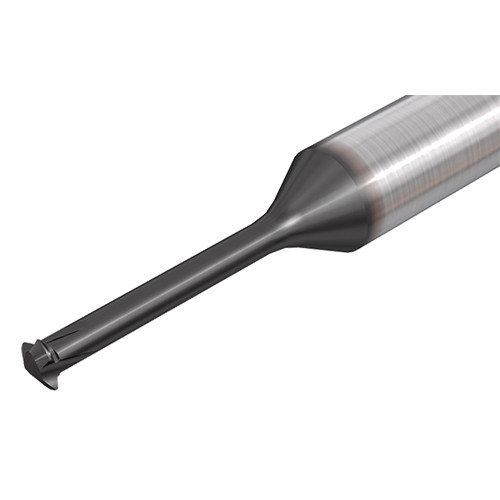

Small diameter single point, internal ISO profile solid carbide thread mills.

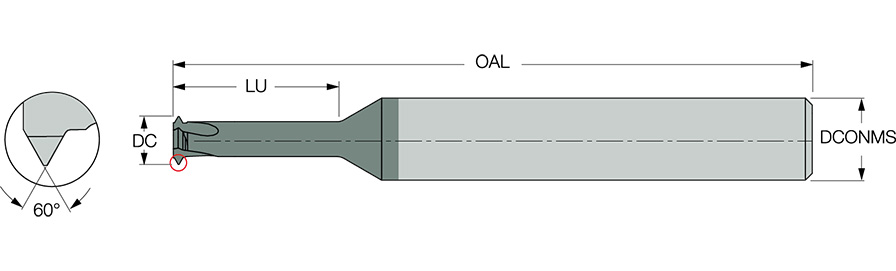

| Thread Pitch (TP) | 0.3 mm | Cutting Edge Material | Carbide |
| Thread Standard | MC |THFT | | Usable Length (LU) | 5 mm |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Measurement Type | Metric |
| Cutting Diameter (DC) | 1.05 mm | Grade | IC902 |
| Overall Length (OAL) | 39 mm | Tool Type | Solid carbide thread mills |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Coating | TiAlN | Thread Form Type (THFT) | M60 |
| Application | | Internal Thread Milling | | Unit | M |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Small diameter single point, internal ISO profile solid carbide thread mills. | COO | Israel |
Shipping Info
Weight per item
0.0080
