PS BT40 90 M16 MAZAK B

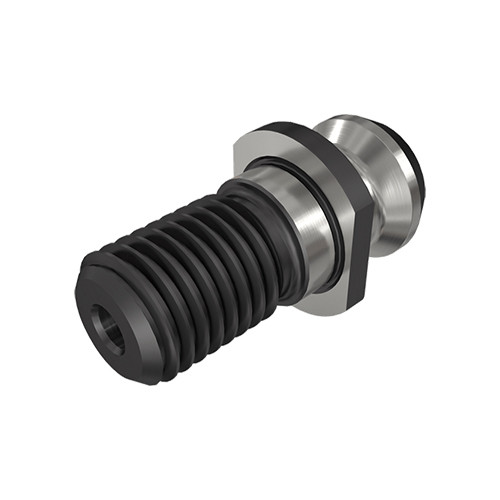

BT pull stud with ANSI Retention knob for MAZAK machines.
| Shank Size (SS) | 40 | Measurement Type | Metric |
| Body Diameter (BD) | 17 mm | Tool Type | PS MAZAK |
| Connection Retention Knob Thread Size (CRKS) | M16 | Body Half Taper Angle (BHTA) | 90 Degrees |
| Body Length (LB) | 22.6 mm | Body Material | Steel |
| Overall Length (OAL) | 54.6 mm | Unit | M |
| Application | | Collets & Accessories | |
Product Features
| Family Description | BT pull stud with ANSI Retention knob for MAZAK machines. | FamilyName | PS BT-MAZAK (Pull Stud) |

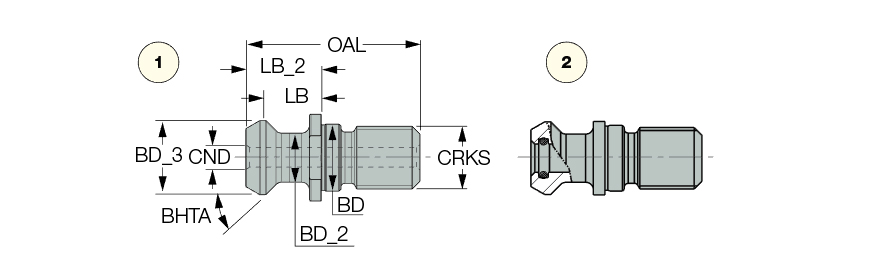

| Remarks | Fig 1: With coolant hole only Fig 2: With coolant hole and internal O-ring | BrandName | Iscar |
| COO | China |
Shipping Info
Weight per item
0.0760
Name
Pull Studs (Retention Knobs)
FamilyName
PS BT-MAZAK (Pull Stud)
BrandName
Iscar
