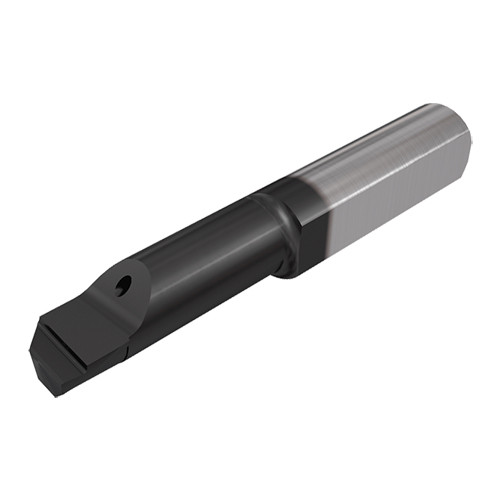

PICCO LX050.3-16R20 IC908

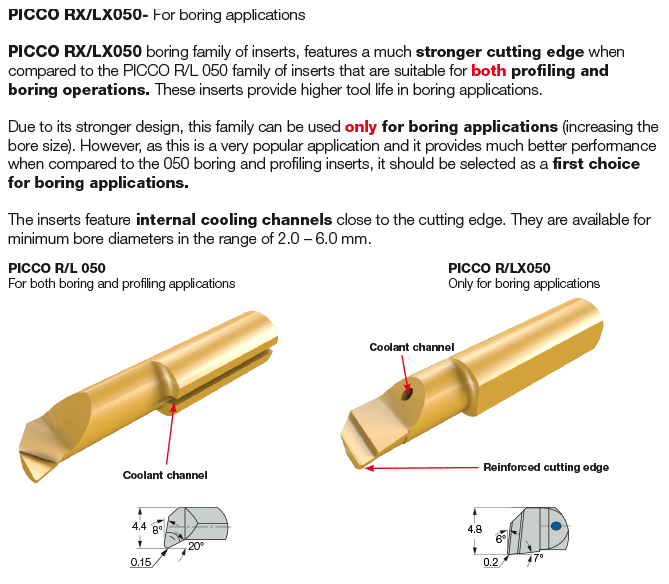

Reinforced boring inserts with internal coolant holes.

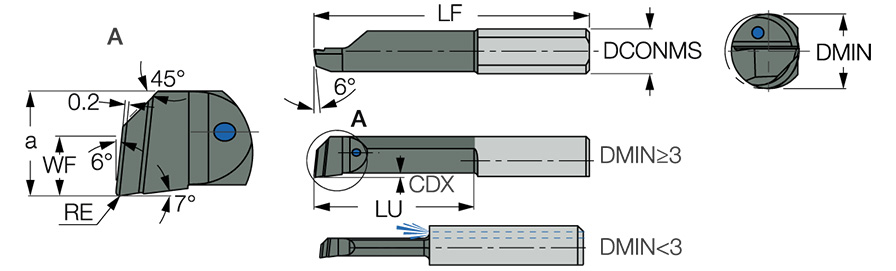

| Connection Diameter Machine Side (DCONMS) | 4 mm | Corner Radius (RE) | 0.2 mm |
| Minimum Bore Diameter (DMIN) | 3 mm | Cutting Depth Maximum (CDX) | 0.15 mm |
| Functional Length (LF) | 30 mm | Functional Width (WF) | 0.7 mm |
| Cutting Direction (HAND) | Left Hand | Usable Length (LU) | 16 mm |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Cutting Edge Material | Carbide |
| Application | | Int. Boring | | Tool Type | Solid Carbide Turn Tool |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Front End Width (a) | 2.7 mm | Unit | M |
Product Features
| Family Description | Reinforced boring inserts with internal coolant holes. | FamilyName | PICCO R/LX050 |
| Remarks | Left-hand inserts on request | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0070
Name
Solid Boring Bars
FamilyName
PICCO R/LX050
BrandName
Iscar
