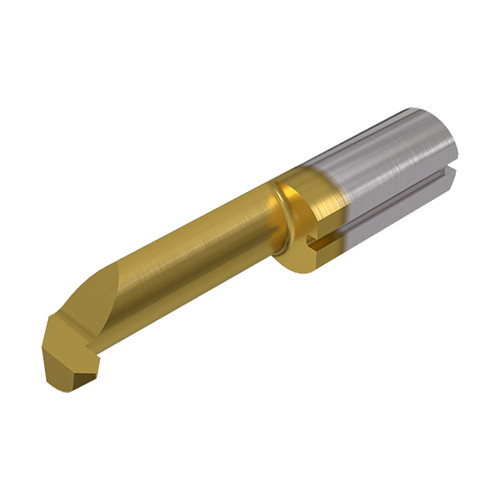

PICCO L 106.0510-15 IC908
PICCOCUT inserts for ISO fine pitch full profile thread.

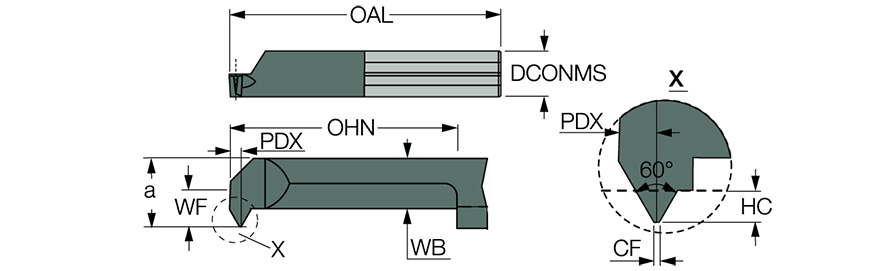

| Connection Diameter Machine Side (DCONMS) | 6 mm | Functional Width (WF) | 2.3 mm |
| Minimum Bore Diameter (DMIN) | 6 mm | Central Flat (CF) | 0.12 mm |
| Functional Length (LF) | 30 mm | Body Material | Carbide |
| Cutting Direction (HAND) | Left Hand | Cutting Edge Material | Carbide |
| Coating | TiAlN | Tool Type | Solid Threading Tools |
| Grade | IC908 | Measurement Type | Metric |
| Application | | Threading (Int.) | | Thread Standard | THFT | |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | M60 |
| Front End Width (a) | 5.3 mm | Unit | M |
Product Features
| Family Description | PICCOCUT inserts for ISO fine pitch full profile thread. | FamilyName | PICCO ISO Full Profile Fine |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0090
Name
Solid Boring Bars
FamilyName
PICCO ISO Full Profile Fine
BrandName
Iscar
