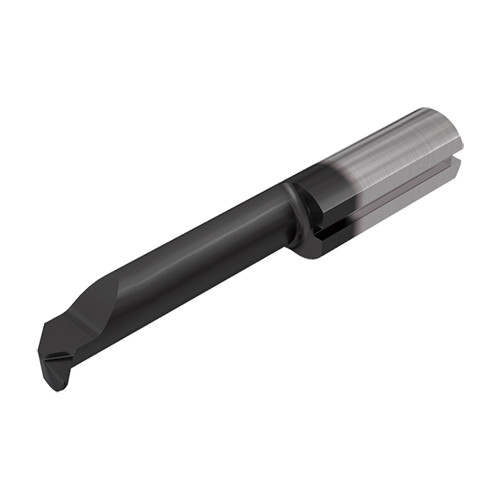

PICCO R 047.5-25 IC908
PICCOCUT inserts for internal deep profiling.
| Connection Diameter Machine Side (DCONMS) | 5 mm | Cutting Depth Maximum (CDX) | 0.5 mm |
| Minimum Bore Diameter (DMIN) | 5 mm | Functional Width (WF) | 1.9 mm |
| Functional Length (LF) | 40 mm | Usable Length (LU) | 25 mm |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Cutting Edge Material | Carbide |
| Application | | Int. Boring and Profiling | | Tool Type | Solid Carbide Turn Tool |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Front End Width (a) | 4.4 mm | Unit | M |
| Corner Radius (RE) | 0.15 mm |
Product Features
| Family Description | PICCOCUT inserts for internal deep profiling. | FamilyName | PICCO R/L 047 |
| Remarks | Left hand inserts on request. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0110
Name
Solid Boring Bars
FamilyName
PICCO R/L 047
BrandName
Iscar
