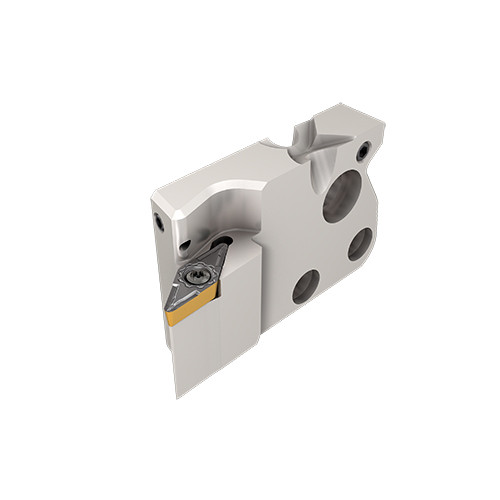

SVJCR-11-PAD-JHP
Screw Lock Adapter with High-Pressure Coolant Mounts 35° Diamond Inserts with a 7° Clearance Angle

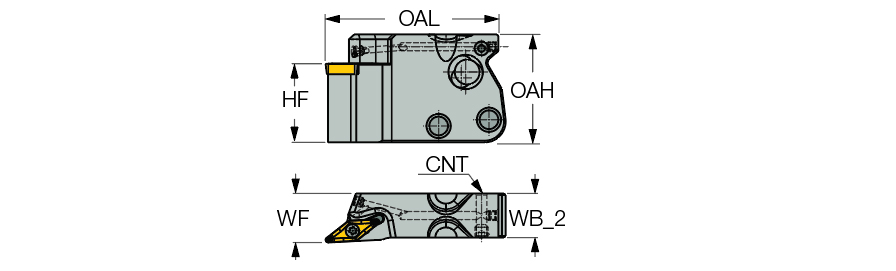

| Overall Length (OAL) | 52.8 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Width (WF) | 15 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 6.35 mm | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Tool Type | Adapter Turning Tools |
| Master Insert Identification (MIID) | VC.. 1104 | Measurement Type | Metric |
| Application | | Ext. 35° Diamond 93° Approach | | Unit | M |
Product Features
| Family Description | Screw Lock Adapter with High-Pressure Coolant Mounts 35° Diamond Inserts with a 7° Clearance Angle | FamilyName | SVJCR/L-PAD-JHP |
| COO | Switzerland | BrandName | Iscar |
Shipping Info
Weight per item
0.1570
Name
General Indexable Turning Tools
FamilyName
SVJCR/L-PAD-JHP
BrandName
Iscar
