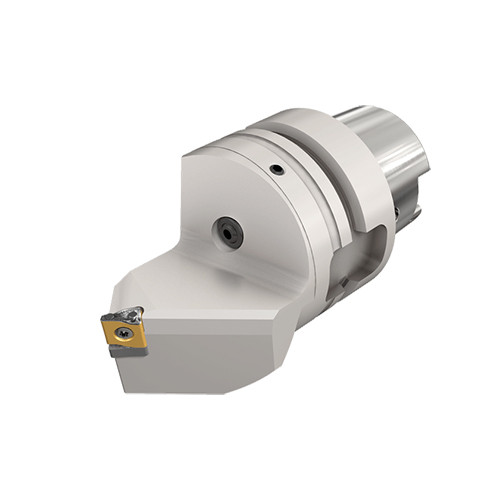

HSK A63WH-SLSNR-G15 TANG
Tools for 45° mounting, with HSK taper shanks for LNMX-HT tangentially, screw clamped inserts. Recommended for heavy-duty, high metal removal rate applications. Can be used on turn-mill machines.

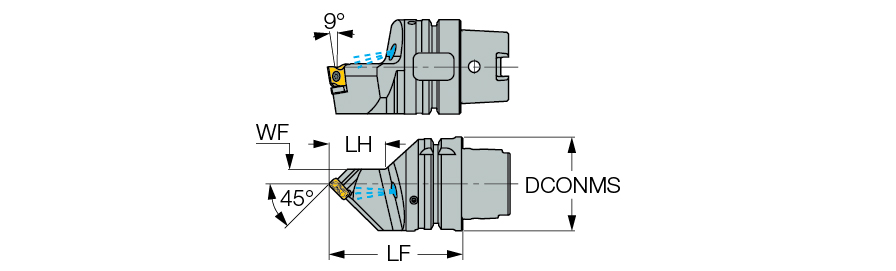

| Overall Length (OAL) | 122 mm | Application | | Ext. Tangential 93° Approach | |
| Functional Length (LF) | 90 mm | Rake Angle Radial (GAMF) | 9 Degrees |
| Functional Width (WF) | 10 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Tool Type | Tapered Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | LNMX 1506 | Connection Code Machine Side (CCMS) | HSK |
| Coolant Supply Property (CSP) | Coolant Thru | Unit | M |
Product Features
| Family Description | Tools for 45° mounting, with HSK taper shanks for LNMX-HT tangentially, screw clamped inserts. Recommended for heavy-duty, high metal removal rate applications. Can be used on turn-mill machines. | FamilyName | HSK A63WH-SLSNR-TANG |

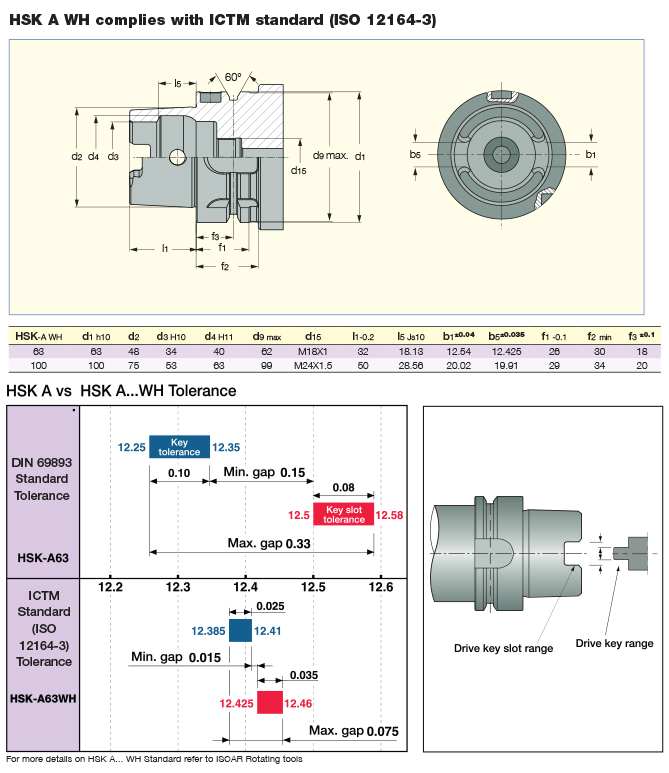

| Remarks | Complies with ICTM standard (ISO 12164-3) A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). For shank dimensions, Click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.4840
Name
General Indexable Turning Tools
FamilyName
HSK A63WH-SLSNR-TANG
BrandName
Iscar
