PSDNN 3232P-19

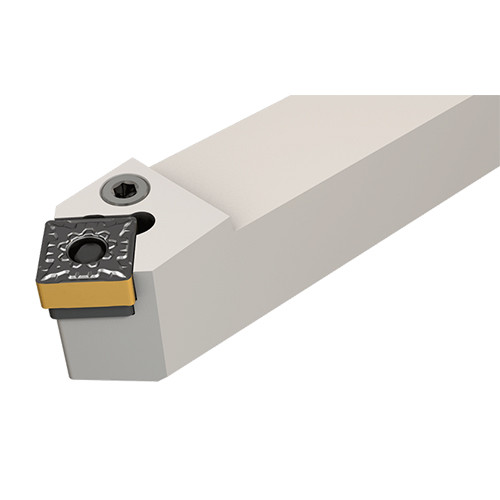

45° lead angle lever lock external turning tools carrying ISO negative SNMG inserts.
| Shank Height (H) | 32 mm | Application | | Ext. 90° Square 45° Approach | |
| Shank Width (B) | 32 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 170 mm | Rake Angle Radial (GAMF) | -8.5 Degrees |
| Head Length (LH) | 41 mm | Body Material | Steel |
| Functional Width (WF) | 16 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 19.05 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Neutral | Unit | M |
| Master Insert Identification (MIID) | SNMG 1906 |
Product Features
| Family Description | 45° lead angle lever lock external turning tools carrying ISO negative SNMG inserts. | FamilyName | PSDNN |
| COO | Korea | BrandName | Iscar |
Shipping Info
Weight per item
1.3190
Name
General Indexable Turning Tools
FamilyName
PSDNN
BrandName
Iscar
