SDPCN 08-3

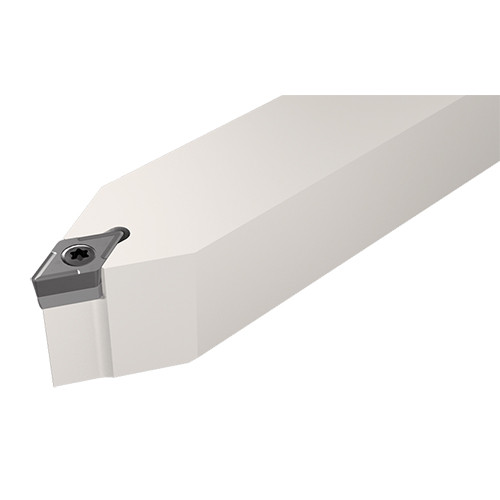

Screw lock holders for 7° clearance 55° diamond inserts.

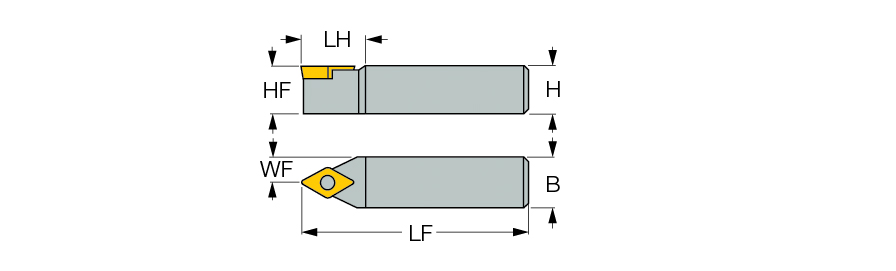

| Shank Height (H) | 1/2″ | Application | | Ext. 55° Diamond 62.5° Approac | |
| Shank Width (B) | 1/2″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 3-1/2″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 0.98″ | Body Material | Steel |
| Functional Width (WF) | 1/4″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral | Unit | I |
| Master Insert Identification (MIID) | DC.. 3 |
Product Features
| Family Description | Screw lock holders for 7° clearance 55° diamond inserts. | FamilyName | SDPCN |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.3153
Name
General Indexable Turning Tools
FamilyName
SDPCN
BrandName
Iscar
