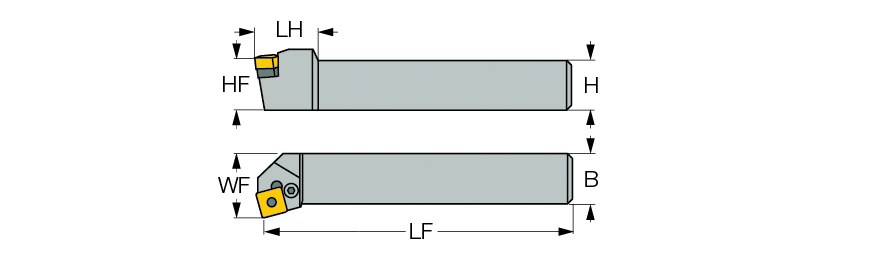

| Shank Height (H) | 25 mm | Master Insert Identification (MIID) | SNMG 1204/SNGA 1204 |
| Shank Width (B) | 25 mm | Application | | Ext. 90° Square 75° Face Appr. | |
| Overall Length (OAL) | 153.06 mm | Rake Angle Axial (GAMP) | -4.4 Degrees |
| Functional Length (LF) | 150 mm | Rake Angle Radial (GAMF) | -7.9 Degrees |
| Head Length (LH) | 23.5 mm | Body Material | Steel |
| Functional Width (WF) | 32 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
Product Features
| Family Description | 75° entering angle lever lock tools carrying ISO negative square inserts, for face turning | FamilyName | PSKNR/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.7240
Name
General Indexable Turning Tools
FamilyName
PSKNR/L
BrandName
Iscar
