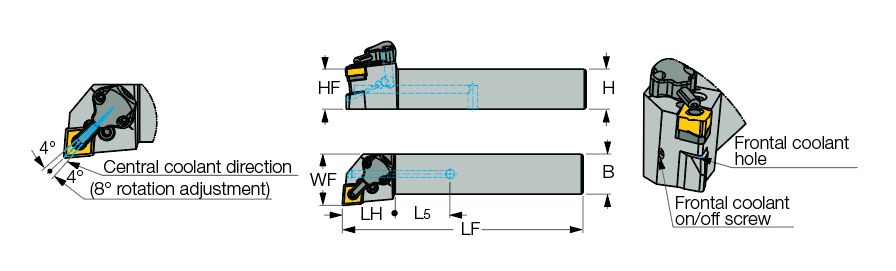

| Shank Height (H) | 20 mm | Application | | Ext. 80° Diamond 95° Approach | |
| Shank Width (B) | 20 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 97 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 27 mm | Body Material | Steel |
| Functional Width (WF) | 25 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
| Master Insert Identification (MIID) | CNMX 1207, CNMG 1204 |
Product Features
| Family Description | Lever lock tools with bottom inlets for high-pressure coolant channels carrying CNMX/CNMG 80° rhombic inserts. The tools were designed to be clamped in VDI and CAMFIX shanks with bottom coolant-fed toolholders. | FamilyName | PCLNR/L-X-JHP-MC |
| Remarks | Supplied with TCX 3 seat for CNMX 0906.. inserts and TCN 323 seat for CNMG 0904.. inserts. TCX 4 seat for CNMX 1207.. inserts and TCN 443 seat for CNMG 1204.. inserts. For more details, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.4530
Name
General Indexable Turning Tools
FamilyName
PCLNR/L-X-JHP-MC
BrandName
Iscar
