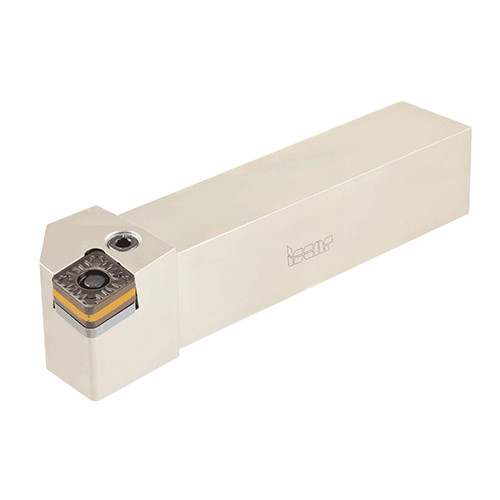

PCLOL 4040S-19-IQ
Lever-lock and dovetail pocket rigid clamping toolholders, for 7° unique double-sided flank 80° rhombic inserts, for rough turning.

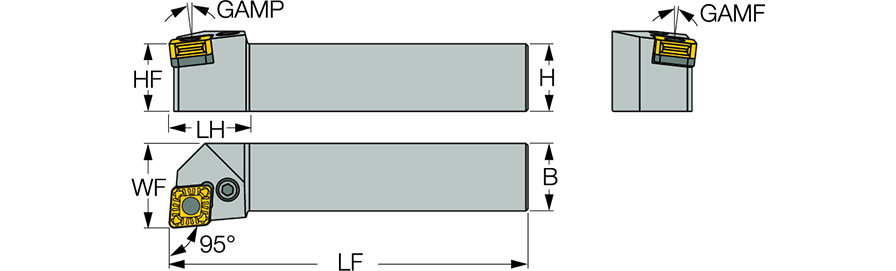

Shank Height (H) | 40 mm | Application | | Ext. 80° Diamond 95° Approach | |
Shank Width (B) | 40 mm | Rake Angle Axial (GAMP) | -6 Degrees |
Functional Length (LF) | 250 mm | Rake Angle Radial (GAMF) | -6 Degrees |
Head Length (LH) | 38 mm | Body Material | Steel |
Functional Width (WF) | 50 mm | Tool Type | Square Shank Turning Tools |
Inscribed Circle Diameter (IC) | 19.05 mm | Measurement Type | Metric |
Cutting Direction (HAND) | Left Hand | Unit | M |
Master Insert Identification (MIID) | COMG 1906 |

Product Features
Family Description | Lever-lock and dovetail pocket rigid clamping toolholders, for 7° unique double-sided flank 80° rhombic inserts, for rough turning. | FamilyName | PCLOR/L-IQ |
COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
3.2600
Name
General Indexable Turning Tools
FamilyName
PCLOR/L-IQ
BrandName
Iscar
