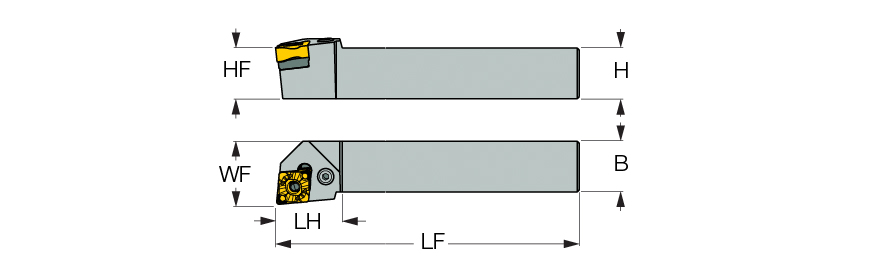

| Shank Height (H) | 32 mm | Application | | Ext. 80° Diamond 95° Approach | |
| Shank Width (B) | 32 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 170 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 32 mm | Body Material | Steel |
| Functional Width (WF) | 40 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 15.88 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
| Master Insert Identification (MIID) | CNMX 1607 CNMG 1606 |
Product Features

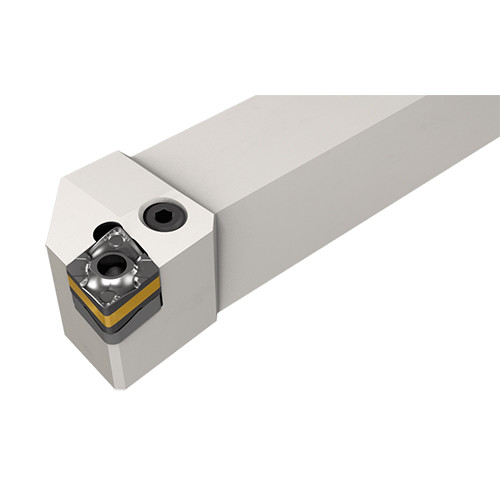

| Family Description | Lever lock tools carrying CNMX/CNMG 80° rhombic inserts. | FamilyName | PCLNR/L-X |

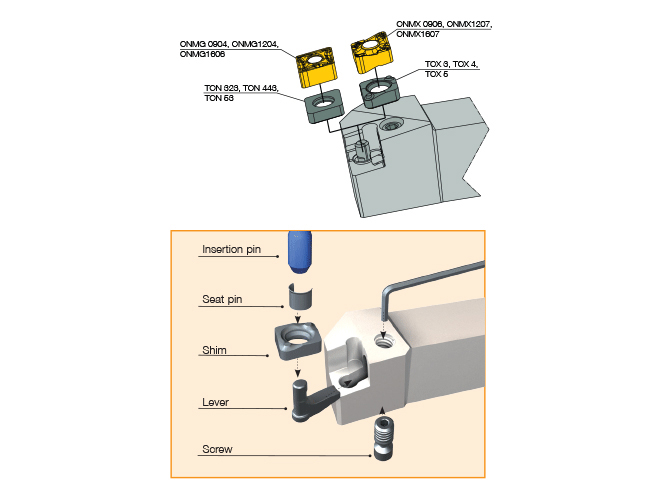

| Remarks | Supplied with TCX 3 seat for CNMX 0906.. inserts and TCN 323 seat for CNMG 0904.. inserts, TCX 4 seat for CNMX 1207.. inserts and TCN 443 seat for CNMG 1204.. inserts, TCX 5 seat for CNMX 1607.. inserts and TCN 53 seat for CNMG 1606.. inserts. | BrandName | Iscar |
| COO | Korea |
Shipping Info
Weight per item
1.3920
Name
General Indexable Turning Tools
FamilyName
PCLNR/L-X
BrandName
Iscar
