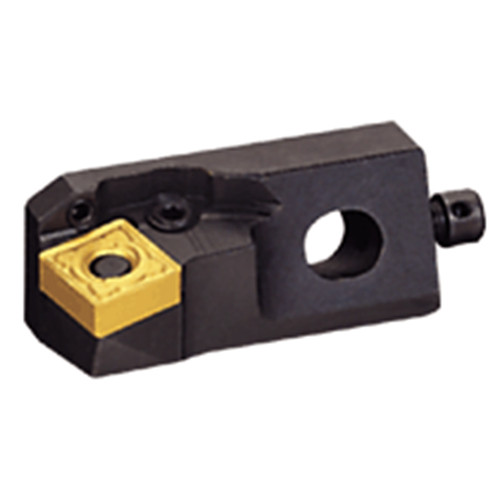

PSKNR 16CA-12
75° lead angle cartridges carrying the negative square inserts.

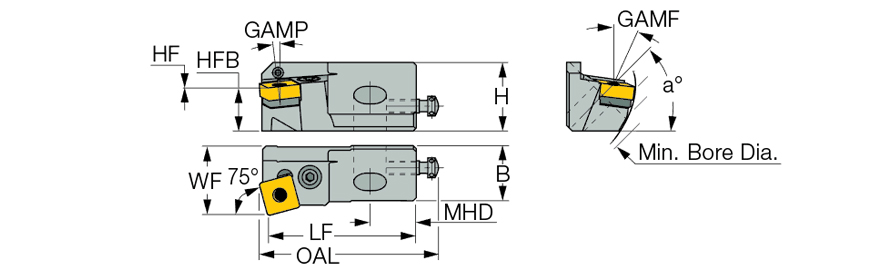

| Shank Height (H) | 25 mm | Coolant Supply Property (CSP) | External |
| Shank Width (B) | 20 mm | Application | | Int. Square 75° Approach | |
| Overall Length (OAL) | 66 mm | Rake Angle Axial (GAMP) | -4 Degrees |
| Functional Length (LF) | 55 mm | Rake Angle Radial (GAMF) | -8 Degrees |
| Head Length (LH) | 38 mm | Body Material | Steel |
| Functional Width (WF) | 25 mm | End Chamfer Angle (ECA) | 45 Degrees |
| Inscribed Circle Diameter (IC) | 12.7 mm | Tool Type | Adapter Turning Tools |
| Minimum Bore Diameter (DMIN) | 60 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
| Master Insert Identification (MIID) | SNMG 1204 |
Product Features
| Family Description | 75° lead angle cartridges carrying the negative square inserts. | FamilyName | PSKNR/L-CA |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.1840
Name
General Indexable Turning Tools
FamilyName
PSKNR/L-CA
BrandName
Iscar
