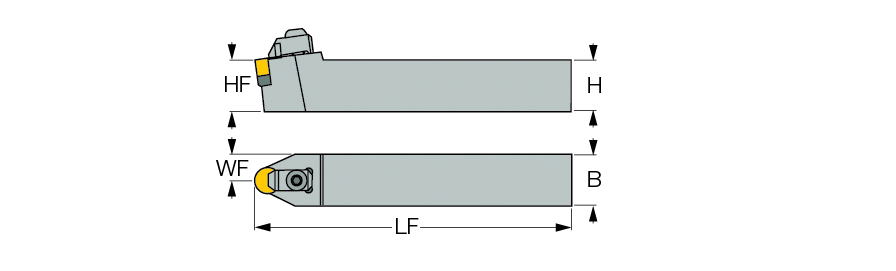

| Shank Height (H) | 25 mm | Rake Angle Axial (GAMP) | -8.5 Degrees |
| Shank Width (B) | 25 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Length (LF) | 150 mm | Body Material | Steel |
| Functional Width (WF) | 12.5 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Neutral | Unit | M |
| Master Insert Identification (MIID) | RNGN 120400 |
Product Features

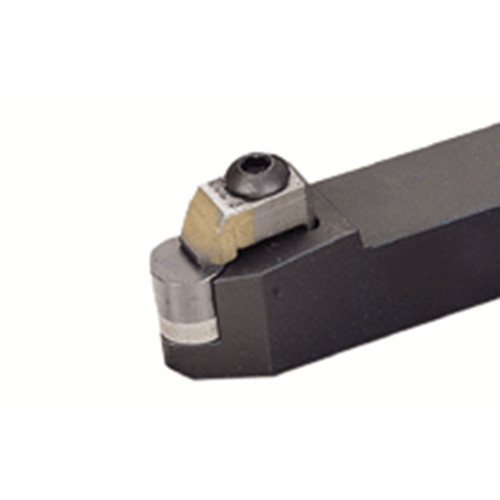

| Family Description | Clamp lock neutral tools carrying round negative ceramic inserts | FamilyName | CRDNN |
| COO | Korea | BrandName | Iscar |
Shipping Info
Weight per item
0.7570
Name
General Indexable Turning Tools
FamilyName
CRDNN
BrandName
Iscar
