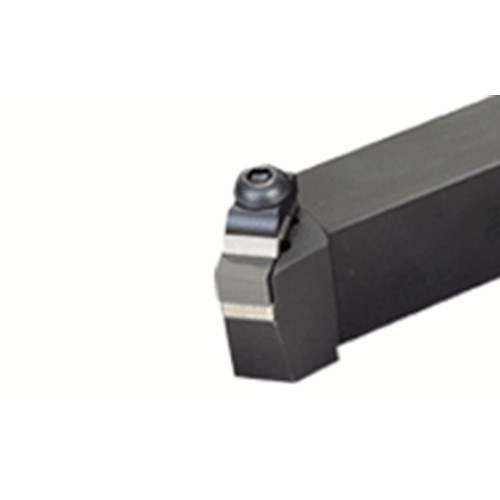

CSSNL 2525M-12CE
45° lead angle tools carrying the square ceramic inserts for longitudinal and face turning.

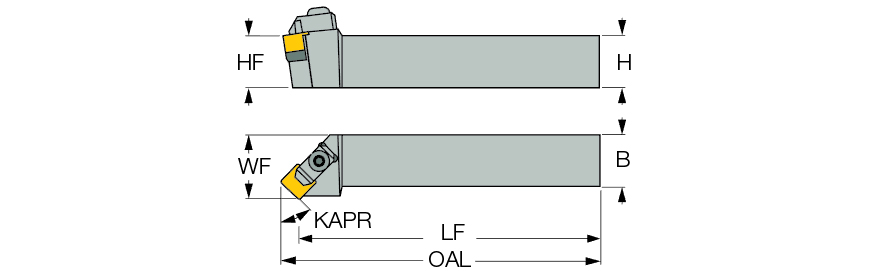

| Shank Height (H) | 25 mm | Application | | Ext. 90°Square 45°Face&Turn Ap | |
| Shank Width (B) | 25 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 150 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Width (WF) | 26 mm | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 12.7 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | SNGN 1207 | Unit | M |
Product Features
| Family Description | 45° lead angle tools carrying the square ceramic inserts for longitudinal and face turning. | FamilyName | CSSNR/L-CE |
| COO | Korea | BrandName | Iscar |
Shipping Info
Weight per item
0.7660
Name
General Indexable Turning Tools
FamilyName
CSSNR/L-CE
BrandName
Iscar
