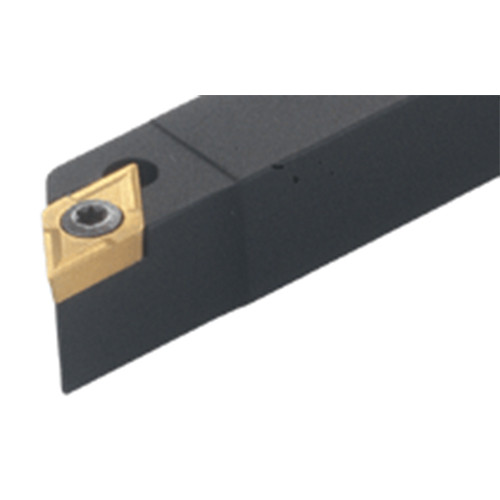

SDACR 1212K-11S
Screw lock tools for Swiss-type machines carrying 55° diamond inserts with 7° clearance angle.

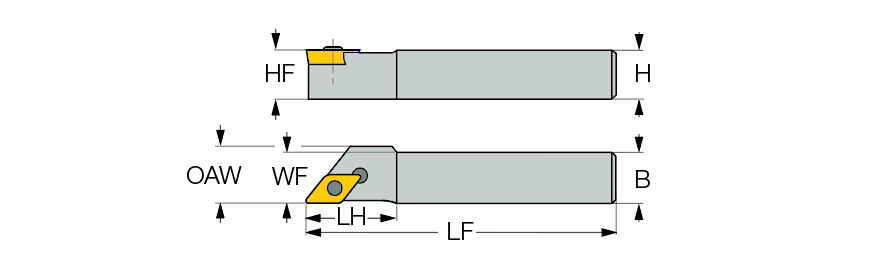

| Shank Height (H) | 12 mm | Application | | Ext. 55° Diamond 91° Approach | |
| Shank Width (B) | 12 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 125 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 17.6 mm | Body Material | Steel |
| Functional Width (WF) | 12.2 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
| Master Insert Identification (MIID) | DC..11T3 |
Product Features
| Family Description | Screw lock tools for Swiss-type machines carrying 55° diamond inserts with 7° clearance angle. | FamilyName | SDACR/L-S |
| COO | Korea | BrandName | Iscar |
Shipping Info
Weight per item
0.1750
Name
General Indexable Turning Tools
FamilyName
SDACR/L-S
BrandName
Iscar
