MWLNL 2020K-06W

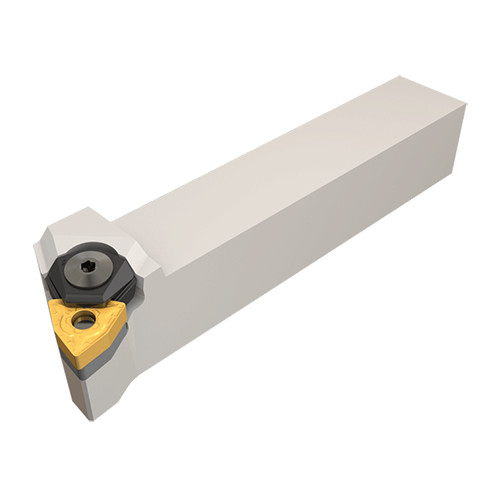

Top wedge lock external tools carrying trigon inserts.

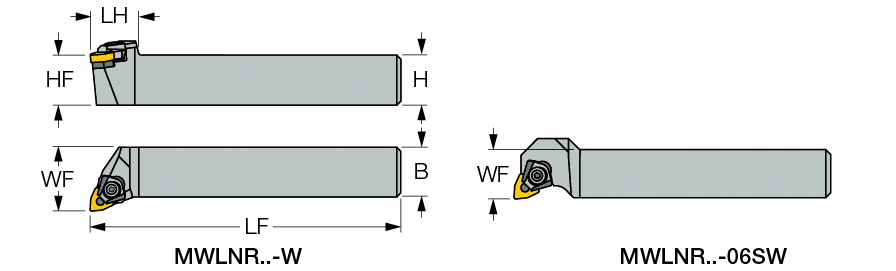

| Shank Height (H) | 20 mm | Application | | Ext. 80° Trigon 95° Approach | |
| Shank Width (B) | 20 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 125 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 25 mm | Body Material | Steel |
| Functional Width (WF) | 25 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Unit | M |
| Master Insert Identification (MIID) | WNMG 06T3 |
Product Features
| Family Description | Top wedge lock external tools carrying trigon inserts. | FamilyName | MWLNR/L-W |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.4190
Name
General Indexable Turning Tools
FamilyName
MWLNR/L-W
BrandName
Iscar
