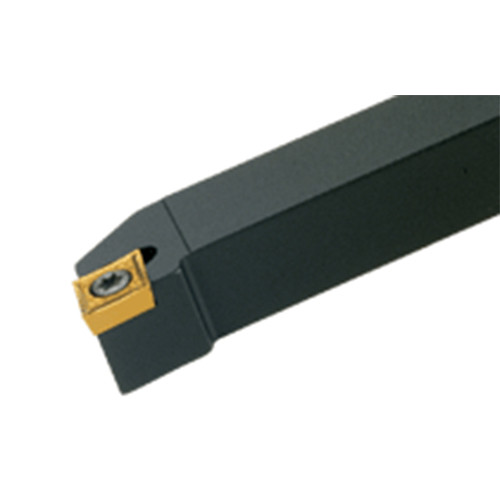

SCLCL 2525M-12
Screw lock tools carrying 80° diamond inserts with 7° clearance angle.

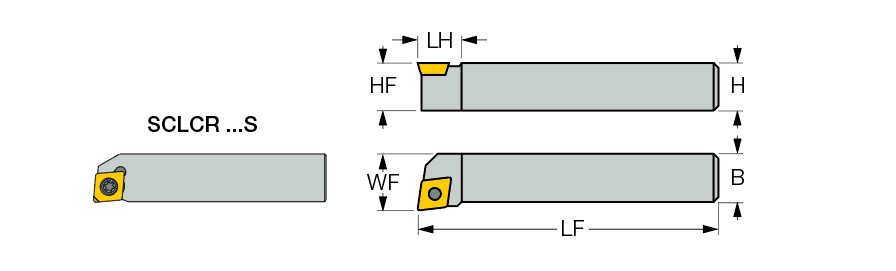

| Shank Height (H) | 25 mm | Application | | Ext. 80° Diamond 95° Approach | |
| Shank Width (B) | 25 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 150 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 20 mm | Body Material | Steel |
| Functional Width (WF) | 32 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Unit | M |
| Master Insert Identification (MIID) | CC.. 1204 |
Product Features
| Family Description | Screw lock tools carrying 80° diamond inserts with 7° clearance angle. | FamilyName | SCLCR/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.7740
Name
General Indexable Turning Tools
FamilyName
SCLCR/L
BrandName
Iscar
