PSBNR 2525M-12

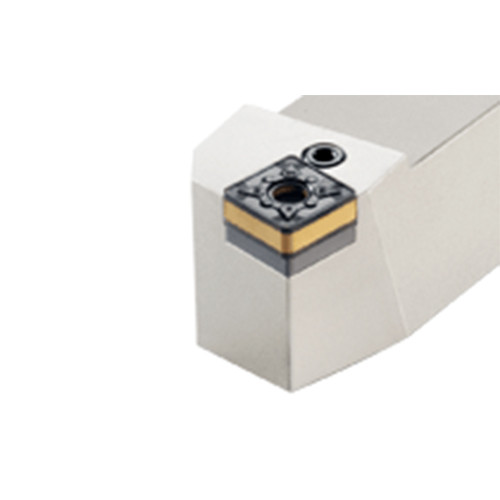

Lever lock 75° lead angle turning tools carrying ISO Negative square inserts.

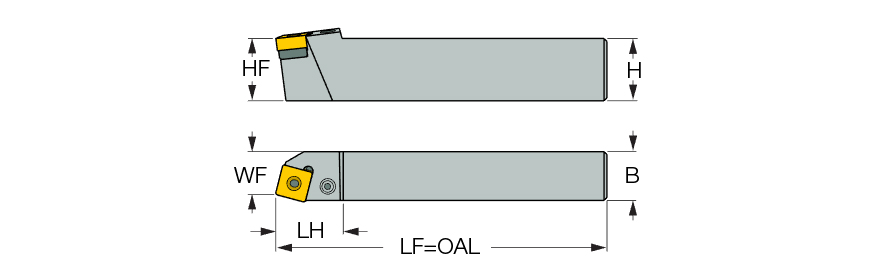

| Shank Height (H) | 25 mm | Application | | Ext. 90° Square 75° Approach | |
| Shank Width (B) | 25 mm | Rake Angle Axial (GAMP) | -7.6 Degrees |
| Functional Length (LF) | 150 mm | Rake Angle Radial (GAMF) | -4.3 Degrees |
| Head Length (LH) | 26.8 mm | Body Material | Steel |
| Functional Width (WF) | 22 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
| Master Insert Identification (MIID) | SNMG 1204 |
Product Features
| Family Description | Lever lock 75° lead angle turning tools carrying ISO Negative square inserts. | FamilyName | PSBNR/L |
| COO | Korea | BrandName | Iscar |
Shipping Info
Weight per item
0.7330
Name
General Indexable Turning Tools
FamilyName
PSBNR/L
BrandName
Iscar
