MVVNN 2020K-16
Pin and clamp tools carrying 35° negative rhombic inserts.

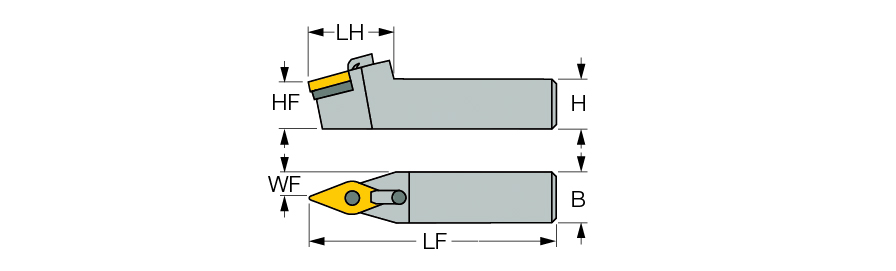

| Shank Height (H) | 20 mm | Application | | Ext. 35° Diamond 72.5° Approac | |
| Shank Width (B) | 20 mm | Rake Angle Axial (GAMP) | -14 Degrees |
| Functional Length (LF) | 125 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 48 mm | Body Material | Steel |
| Functional Width (WF) | 10 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Neutral | Unit | M |
| Master Insert Identification (MIID) | VNMG 1604.. |
Product Features
| Family Description | Pin and clamp tools carrying 35° negative rhombic inserts. | FamilyName | MVVNN |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.4290
Name
General Indexable Turning Tools
FamilyName
MVVNN
BrandName
Iscar
