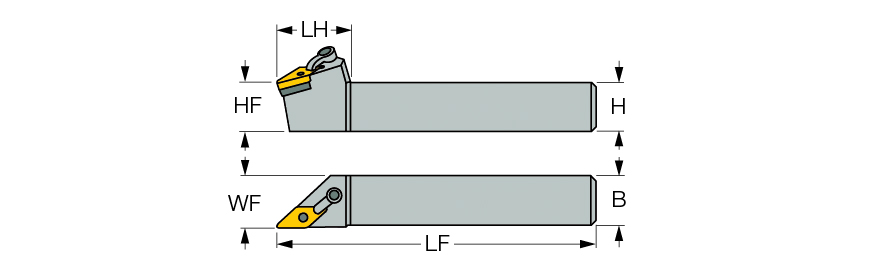

| Shank Height (H) | 25 mm | Application | | Ext. 35° Diamond 93° Approach | |
| Shank Width (B) | 25 mm | Rake Angle Axial (GAMP) | -10 Degrees |
| Functional Length (LF) | 150 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 41 mm | Body Material | Steel |
| Functional Width (WF) | 32 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Unit | M |
| Master Insert Identification (MIID) | VNMG 1604 |
Product Features

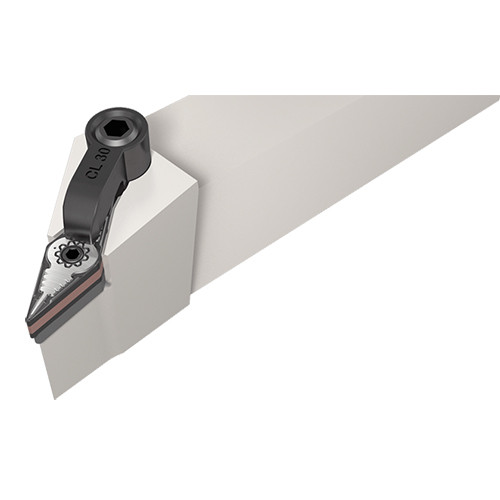

| Family Description | Pin and clamp tools carrying 35° negative rhombic inserts. | FamilyName | MVJNR/L |
| COO | Korea | BrandName | Iscar |
Shipping Info
Weight per item
0.7300
Name
General Indexable Turning Tools
FamilyName
MVJNR/L
BrandName
Iscar
