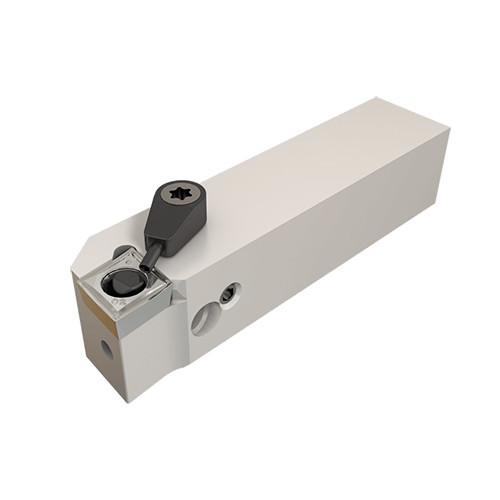

PCLCL 1212X-09S-JHP-MC
Lever lock tools with bottom fed channels for high pressure coolant, carrying the 80° positive rhombic inserts. The tools were designed for Swiss automatic machines.

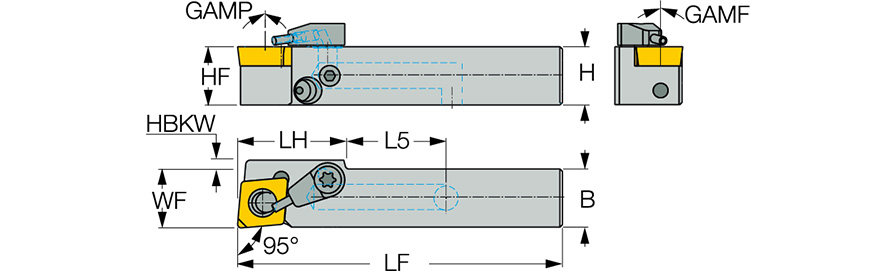

| Shank Height (H) | 12 mm | Application | | Ext. 80° Diamond 95° Approach | |
| Shank Width (B) | 12 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 67 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 23 mm | Body Material | Steel |
| Functional Width (WF) | 12.2 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Unit | M |
| Master Insert Identification (MIID) | CC.. 09T3 |
Product Features
| Family Description | Lever lock tools with bottom fed channels for high pressure coolant, carrying the 80° positive rhombic inserts. The tools were designed for Swiss automatic machines. | FamilyName | PCLCR/L-S-JHP-MC |
| COO | Israel | BrandName | Iscar |
Shipping Info
Name
General Indexable Turning Tools
FamilyName
PCLCR/L-S-JHP-MC
BrandName
Iscar
