| Applicable Material | | Hard Materials | | Tool Type | Turn Ultra hard Inserts |
| Application | | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 93° Approach | Int. 35° Diamond 93° Approach | | Min D.O.C. | 0.05 mm |
| Insert Style | VNGA | Depth of Cut Maximum (APMX) | 0.3 mm |
| Corner Radius (RE) | 0.8 mm | Min. Turning Feed (ft(min)) | 0.02 mm/rev |
| Insert Size | 160408 | Max. Turning Feed (ft(max)) | 0.3 mm/rev |

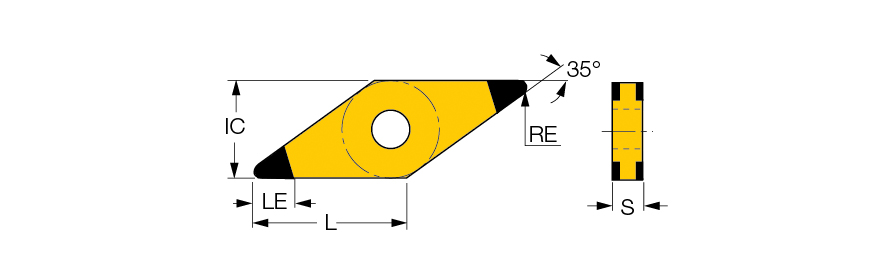

| Cutting Edge Length (L) | 16.6 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 4.76 mm | Chip Breaker Type | M |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | PCBN | Body Material | Carbide |
| Coating | TiN | Unit | M |
| Grade | IB10HC |
Product Features

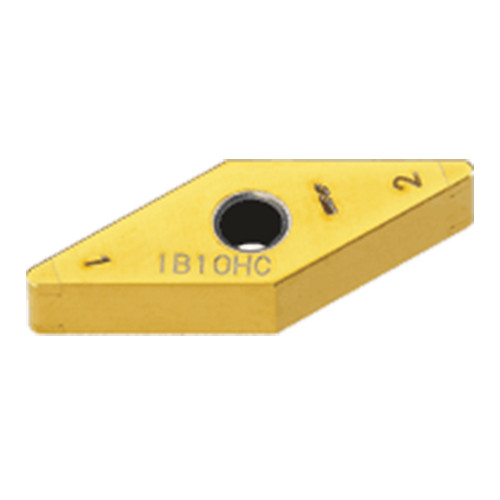

| Family Description | 35° rhombic inserts with 4 CBN tips for machining hardened steel. | FamilyName | VNGA-4 (CBN) |
| Remarks | For dimensions and tolerances, Click on More Info | BrandName | Iscar |
| COO | Japan |
Shipping Info
Weight per item
0.0150
Name
Turning Indexable Inserts
FamilyName
VNGA-4 (CBN)
BrandName
Iscar
