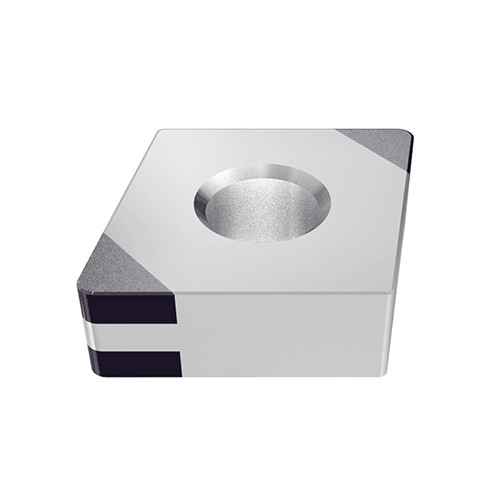

CNMA 120412-MW4 IB25HC
80° rhombic inserts with 4 CBN wiper edge tips for machining hardened steel.
| Applicable Material | | Hard Materials | | Tool Type | Turn Ultra hard Inserts |
| Application | | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | | Min D.O.C. | 0.05 mm |

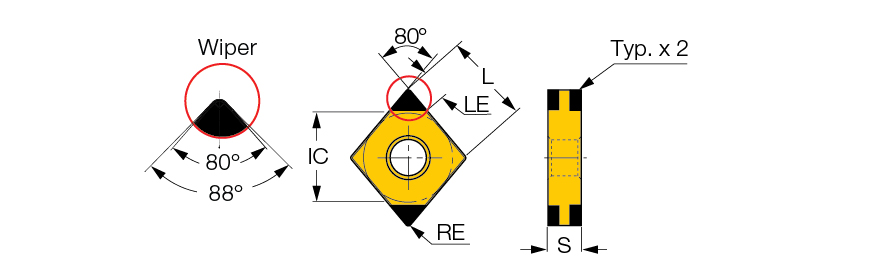

| Corner Radius (RE) | 1.2 mm | Depth of Cut Maximum (APMX) | 0.5 mm |
| Insert Size | 433-MW | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Cutting Edge Length (L) | 12.9 mm | Max. Turning Feed (ft(max)) | 0.4 mm/rev |
| Insert Thickness (S) | 4.76 mm | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | MW |
| Cutting Edge Material | PCBN | Measurement Type | Metric |
| Coating | TiN | Body Material | Carbide |
| Grade | IB25HC | Unit | M |
| Fixing Hole Diameter (D1) | 5.16 mm |
Product Features
| Family Description | 80° rhombic inserts with 4 CBN wiper edge tips for machining hardened steel. | FamilyName | CNMA-MW4 (CBN) |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Japan |
Shipping Info
Weight per item
0.0150
Name
Turning Indexable Inserts
FamilyName
CNMA-MW4 (CBN)
BrandName
Iscar
