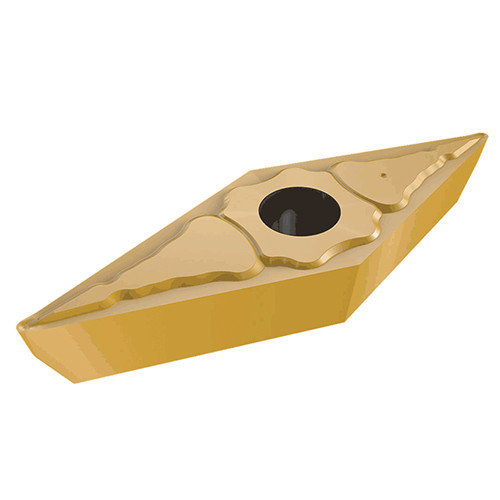

VCMT 160404-FPC IC520N
35° rhombic 7° cermet positive flank inserts for semi-finish turning of steel and automotive components

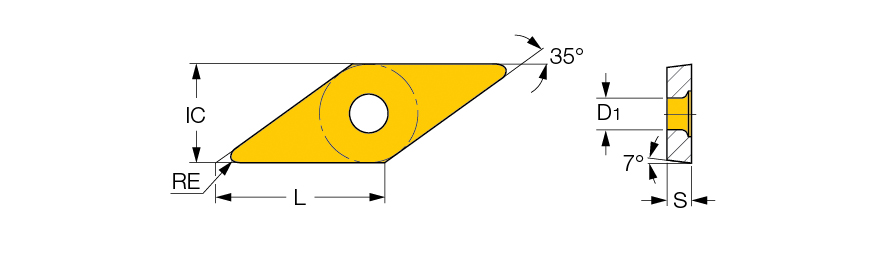

| Applicable Material | | Steel | Stainless Steel | | Fixing Hole Diameter (D1) | 4.4 mm |
| Application | | Ext. 35° Diamond 112° Approach | Ext. 35° Diamond 117° Approach | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 91° Approach | Ext. 35° Diamond 93° Approach | Int. 35° Diamo 95° Back Approa | Int. 35° Diamond 107.5°Approa | Int. 35° Diamond 93° Approach | Int. 35° Diamond 95° Approach | | Tool Type | Turn Negative Inserts |
| Corner Radius (RE) | 0.4 mm | Min D.O.C. | 0.7 mm |
| Insert Size | 331-FP | Depth of Cut Maximum (APMX) | 2 mm |
| Cutting Edge Length (L) | 16.6 mm | Min. Turning Feed (ft(min)) | 0.04 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.22 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Material | Cermet | Measurement Type | Metric |
| Coating | TiCN+TiN | Body Material | Carbide |
| Grade | IC520N | Unit | M |
Product Features
| Family Description | 35° rhombic 7° cermet positive flank inserts for semi-finish turning of steel and automotive components | FamilyName | VCMT-FPC-CERMET |
| Remarks | For chipformer selection guide of cermet inserts, and for dimensions and tolerances, click on More Info | BrandName | Iscar |
| COO | Korea |
Shipping Info
Weight per item
0.0065
Name
Turning Indexable Inserts
FamilyName
VCMT-FPC-CERMET
BrandName
Iscar
