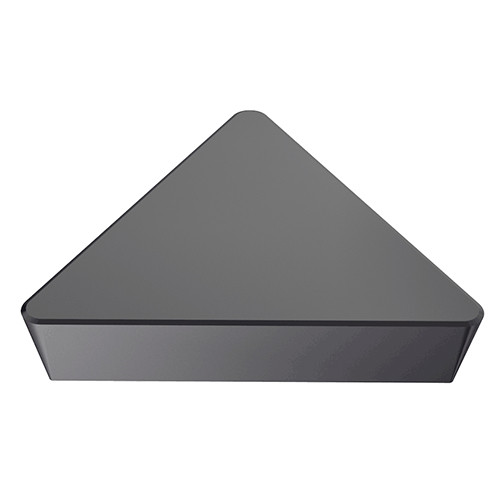

TPGN 160308T IN22
Positive 60° triangular ceramic inserts for machining cast iron and hardened steel
| Applicable Material | | Cast Iron | Hard Materials | | Tool Type | Turn Ultra hard Inserts |
| Application | | Ext. 60° Triangle 60° Approach | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle 93° Approach | Ext. 60° Triangle Facing | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | | Min D.O.C. | 0.1 mm |
| Insert Style | TPG | Depth of Cut Maximum (APMX) | 4 mm |

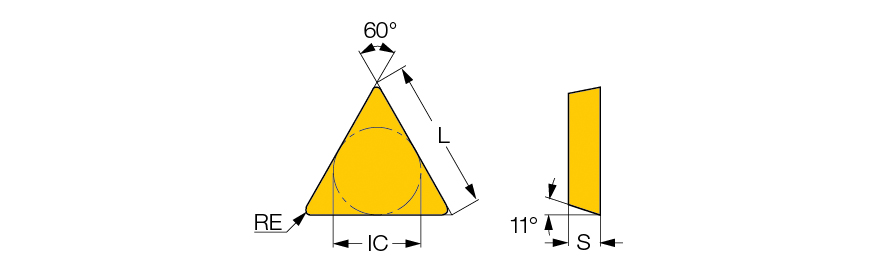

| Corner Radius (RE) | 0.8 mm | Min. Turning Feed (ft(min)) | 0.07 mm/rev |
| Insert Size | 22T | Max. Turning Feed (ft(max)) | 0.5 mm/rev |
| Cutting Edge Length (L) | 16.5 mm | Clearance Angle Major (AN) | 11 Degrees |
| Insert Thickness (S) | 3.18 mm | Chip Breaker Type | W |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Ceramic | Body Material | Carbide |
| Coating | Uncoated | Unit | M |
| Grade | IN22 |
Product Features
| Family Description | Positive 60° triangular ceramic inserts for machining cast iron and hardened steel | FamilyName | TPGN (CER) |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Korea |
Shipping Info
Weight per item
0.0027
Name
Turning Indexable Inserts
FamilyName
TPGN (CER)
BrandName
Iscar
