VCGT 220520-DW ID5

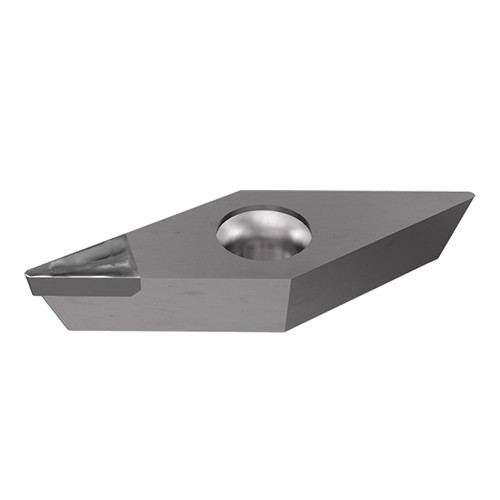

35° rhombic inserts with PCD single-top corner, brazed tip and a chipformer. Used for finishing aluminum and other nonferrous materials.
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Tool Type | Turn Inserts AL, HTA Geometric |
| Application | | Ext. 35° Diamond 112° Approach | Ext. 35° Diamond 117° Approach | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 91° Approach | Ext. 35° Diamond 93° Approach | Int. 35° Diamo 95° Back Approa | Int. 35° Diamond 107.5°Approa | Int. 35° Diamond 95° Approach | Int. Machining Aluminum Wheels | | Min D.O.C. | 0.1 mm |

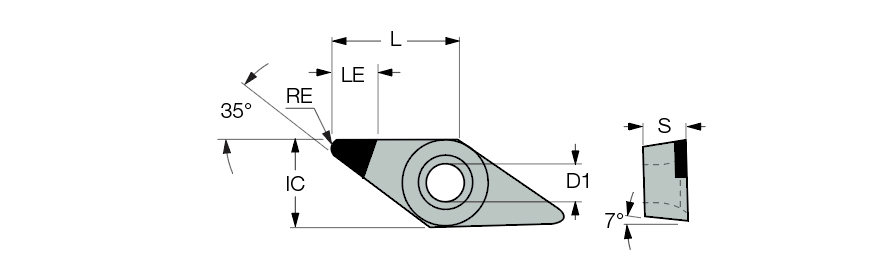

| Insert Style | VCGT | Depth of Cut Maximum (APMX) | 3 mm |
| Corner Radius (RE) | 2 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Size | 220520 | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Cutting Edge Length (L) | 22.1 mm | Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 5.56 mm | Chip Breaker Type | DW |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | PCD | Body Material | Carbide |
| Grade | ID5 | Unit | M |
| Fixing Hole Diameter (D1) | 5.5 mm |
Product Features
| Family Description | 35° rhombic inserts with PCD single-top corner, brazed tip and a chipformer. Used for finishing aluminum and other nonferrous materials. | FamilyName | VCGT-DW (PCD) |
| COO | Germany | BrandName | Iscar |
Shipping Info
Weight per item
0.0515
Name
Turning Indexable Inserts
FamilyName
VCGT-DW (PCD)
BrandName
Iscar
