| Applicable Material | | Cast Iron | Hard Materials | | Tool Type | Turn Ultra hard Inserts |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | | Min D.O.C. | 0.05 mm |
| Insert Style | DNGA | Depth of Cut Maximum (APMX) | 0.5 mm |
| Corner Radius (RE) | 1.2 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Size | 150612 | Max. Turning Feed (ft(max)) | 0.18 mm/rev |

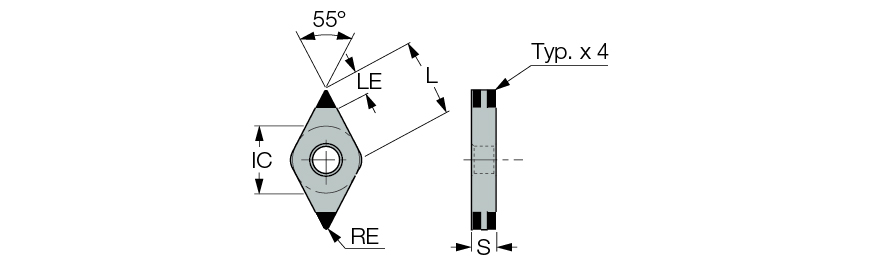

| Cutting Edge Length (L) | 15.5 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 6.35 mm | Chip Breaker Type | A |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | PCBN | Body Material | Carbide |
| Coating | Uncoated | Unit | M |
| Grade | IB55 |
Product Features

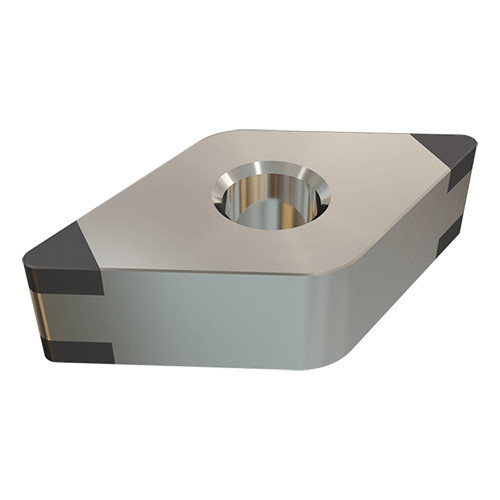

| Family Description | 55° rhombic 4-cornered CBN inserts for machining hardened steel. | FamilyName | DNGA-4 (CBN) |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Switzerland |
Shipping Info
Weight per item
0.0275
Name
Turning Indexable Inserts
FamilyName
DNGA-4 (CBN)
BrandName
Iscar
