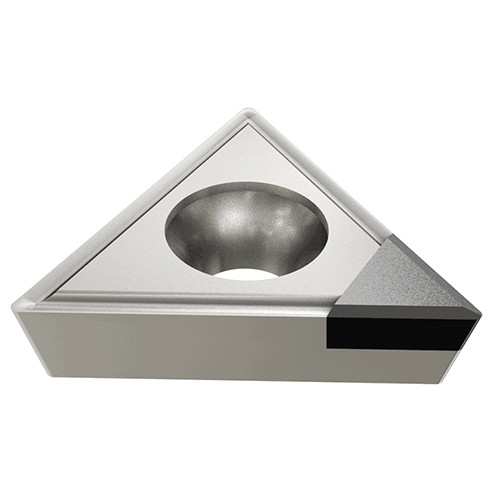

TPGX 110304T IB90
Triangular inserts with CBN single top corner brazed tip, 11° clearance and positive rake angle, for machining cast iron and hardened steel

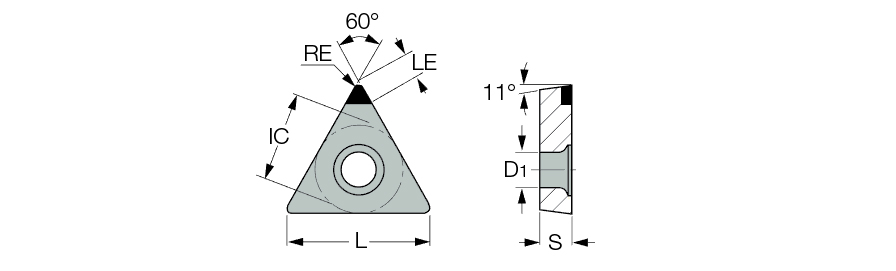

| Applicable Material | | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 3.5 mm |
| Application | | Int. 60° Triangle 90° Approach | Int. 60° Triangle 91° Approach | | Tool Type | Turn Ultra hard Inserts |
| Insert Style | TPGX | Min D.O.C. | 0.05 mm |
| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 0.5 mm |
| Insert Size | 221T | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Cutting Edge Length (L) | 11 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Insert Thickness (S) | 3.18 mm | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 6.35 mm | Chip Breaker Type | X |
| Cutting Edge Material | PCBN | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IB90 | Unit | M |
Product Features
| Family Description | Triangular inserts with CBN single top corner brazed tip, 11° clearance and positive rake angle, for machining cast iron and hardened steel | FamilyName | TPGX (CBN) |
| Remarks | For dimensions and tolerances, Click on More info | BrandName | Iscar |
| COO | Korea |
Shipping Info
Weight per item
0.0070
Name
Turning Indexable Inserts
FamilyName
TPGX (CBN)
BrandName
Iscar
