DCMT 11T308T IB55

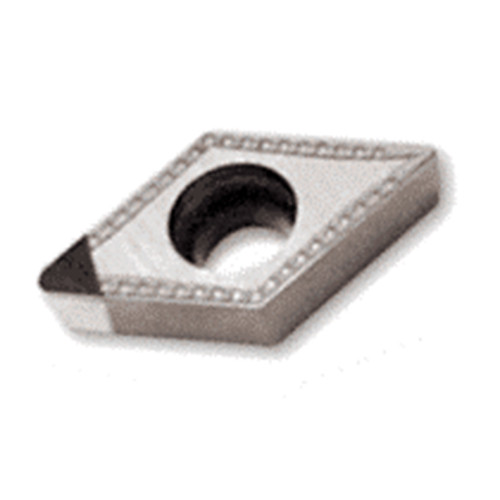

55° rhombic inserts with CBN single top corner brazed tip, used for finishing forged steel and cast iron.
| Applicable Material | | Cast Iron | Hard Materials | | Fixing Hole Diameter (D1) | 4.4 mm |
| Application | | Ext. 55° Diamond 107.5° Appr. | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 91° Approach | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | Y Axis for Swiss Type Machines | | Tool Type | Turn Ultra hard Inserts |
| Insert Style | DCMT | Min D.O.C. | 0.05 mm |

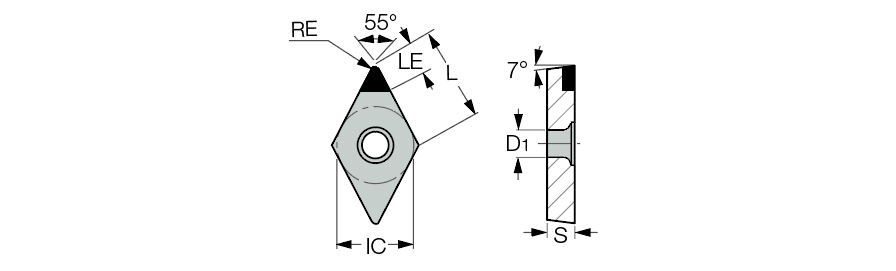

| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 0.5 mm |
| Insert Size | 3-2T | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Cutting Edge Length (L) | 11.6 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Insert Thickness (S) | 3.97 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 9.52 mm | Chip Breaker Type | W |
| Cutting Edge Material | PCBN | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IB55 | Unit | M |
Product Features
| Family Description | 55° rhombic inserts with CBN single top corner brazed tip, used for finishing forged steel and cast iron. | FamilyName | DCMT (CBN) |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Switzerland |
Shipping Info
Weight per item
0.0160
Name
Turning Indexable Inserts
FamilyName
DCMT (CBN)
BrandName
Iscar
