DCMT 11T308D ID5

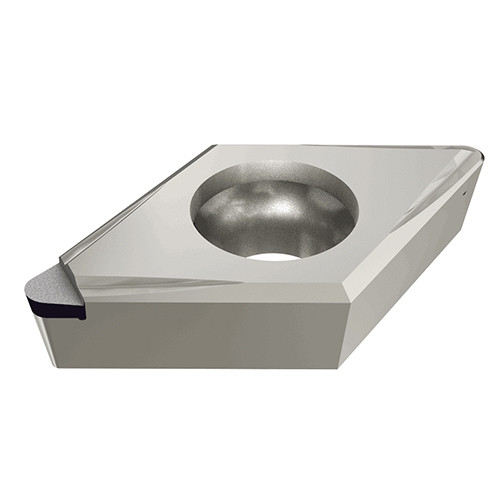

55° rhombic inserts with PCD single top corner brazed tip, 7° clearance and positive rake angle, used for finishing al uminum
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Tool Type | Turn Ultra hard Inserts |
| Application | | Ext. 55° Diamond 107.5° Appr. | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 91° Approach | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | Y Axis for Swiss Type Machines | | Min D.O.C. | 0.1 mm |

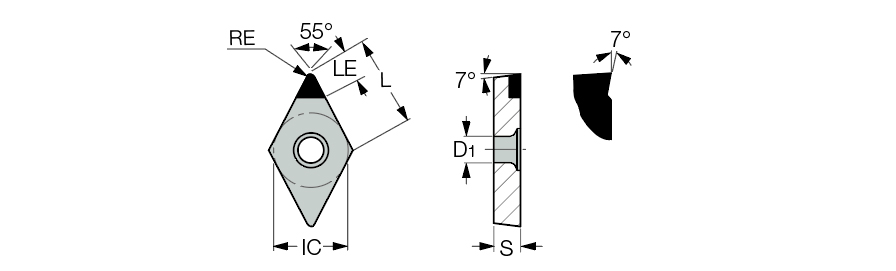

| Insert Style | DCMT | Depth of Cut Maximum (APMX) | 3 mm |
| Corner Radius (RE) | 0.8 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Size | 11T308 | Max. Turning Feed (ft(max)) | 0.29 mm/rev |
| Cutting Edge Length (L) | 11.6 mm | Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 3.97 mm | Chip Breaker Type | DW |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | PCD | Body Material | Carbide |
| Grade | ID5 | Unit | M |
| Fixing Hole Diameter (D1) | 4.4 mm |
Product Features
| Family Description | 55° rhombic inserts with PCD single top corner brazed tip, 7° clearance and positive rake angle, used for finishing al uminum | FamilyName | DCMT (PCD) |
| Remarks | For dimensions and tolerances, Click on More Info | BrandName | Iscar |
| COO | Korea |
Shipping Info
Weight per item
0.0110
Name
Turning Indexable Inserts
FamilyName
DCMT (PCD)
BrandName
Iscar
