| Applicable Material | | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.05 mm |
| Application | | Ext. Round Face & Turn | | Depth of Cut Maximum (APMX) | 0.5 mm |
| Insert Style | RCGX | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Size | 060300 | Max. Turning Feed (ft(max)) | 0.25 mm/rev |

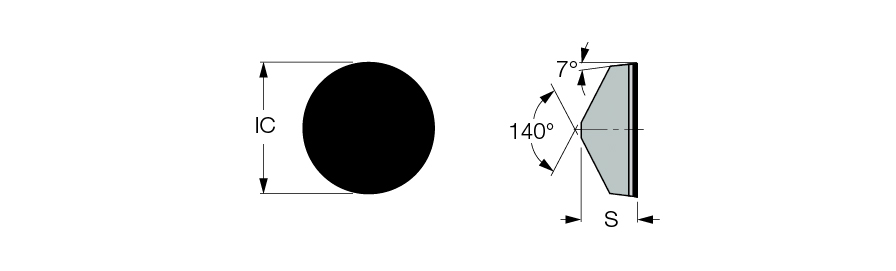

| Insert Thickness (S) | 3.18 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 6.35 mm | Chip Breaker Type | X |
| Cutting Edge Material | PCBN | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IB90 | Unit | M |
| Tool Type | Turn Ultra hard Inserts |
Product Features

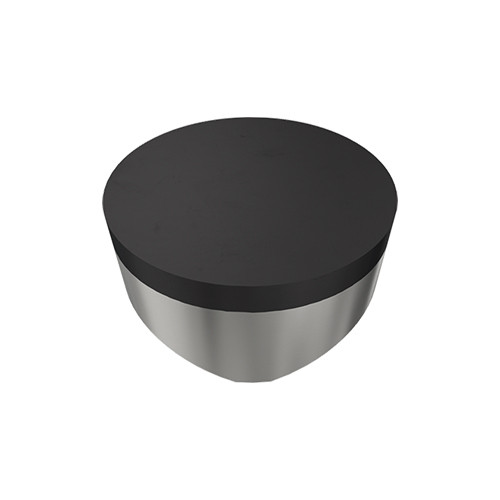

| Family Description | CBN round inserts with a flat rake, used for machining cast iron and hardened steel. | FamilyName | RCGX (CBN) |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Korea |
Shipping Info
Weight per item
0.0075
Name
Turning Indexable Inserts
FamilyName
RCGX (CBN)
BrandName
Iscar
