SCMT 120408-F3M IC6025

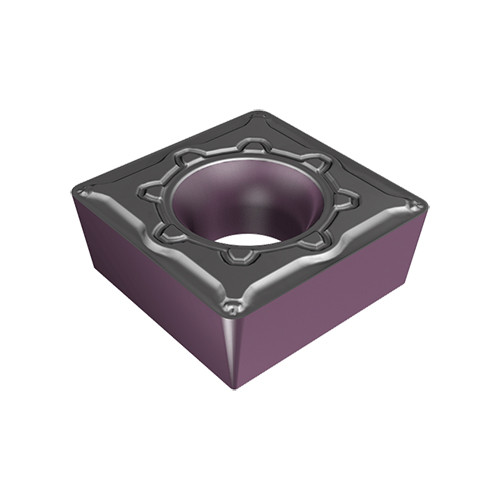

Square positive flank inserts for stainless steel finishing applications.
| Applicable Material | | Stainless Steel | | Fixing Hole Diameter (D1) | 5.5 mm |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90°Square 45°Face&Turn Ap | Int. 90° Square 75° Approach | | Tool Type | Turn Positive Inserts |
| Insert Style | SCMT | Min D.O.C. | 0.18 mm |
| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 2 mm |
| Insert Size | 120408 | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Cutting Edge Length (L) | 12.7 mm | Max. Turning Feed (ft(max)) | 0.32 mm/rev |
| Insert Thickness (S) | 4.76 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | F3M |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | IC6025 | Unit | M |
Product Features
| Family Description | Square positive flank inserts for stainless steel finishing applications. | FamilyName | SCMT-F3M |
| Remarks | For dimensions and tolerances, see more info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0096
Name
Turning Indexable Inserts
FamilyName
SCMT-F3M
BrandName
Iscar
