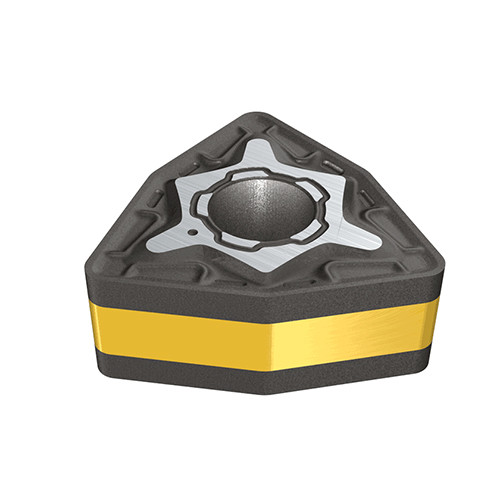

WNMG 080412-M3P IC8250
Double-sided trigon inserts, for medium machining conditions on steel. Low cutting forces due to positive rake, provide smooth cutting.
| Applicable Material | | Steel | Stainless Steel | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 80° Trigon 95° Approach | Int. 80° Trigon 95° Approach | | Min D.O.C. | 0.8 mm |
| Insert Style | WNMG | Depth of Cut Maximum (APMX) | 4 mm |

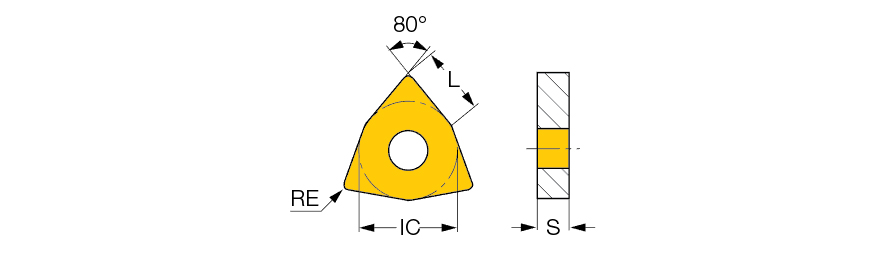

| Corner Radius (RE) | 1.2 mm | Min. Turning Feed (ft(min)) | 0.18 mm/rev |
| Insert Size | 080412 | Max. Turning Feed (ft(max)) | 0.6 mm/rev |
| Cutting Edge Length (L) | 8.7 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 4.76 mm | Chip Breaker Type | M3P |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN | Unit | M |
| Grade | IC8250 |
Product Features
| Family Description | Double-sided trigon inserts, for medium machining conditions on steel. Low cutting forces due to positive rake, provide smooth cutting. | FamilyName | WNMG-M3P |
| Remarks | For dimensions and tolerances, see more info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0105
Name
Turning Indexable Inserts
FamilyName
WNMG-M3P
BrandName
Iscar
