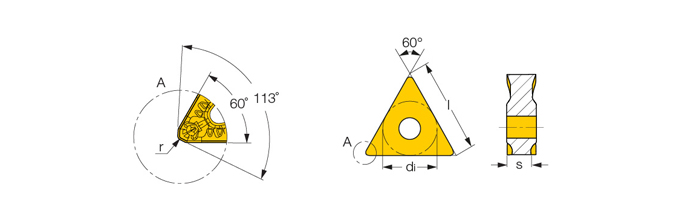

| Applicable Material | | Steel | Cast Iron | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 60° Triangle 91° Approach | | Min D.O.C. | 2 mm |
| Insert Style | TNMX | Depth of Cut Maximum (APMX) | 5 mm |
| Corner Radius (RE) | 0.4 mm | Min. Turning Feed (ft(min)) | 0.25 mm/rev |
| Insert Size | 160604 | Max. Turning Feed (ft(max)) | 0.4 mm/rev |
| Cutting Edge Length (L) | 16.5 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 4.4 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 9.52 mm | Chip Breaker Type | HTW |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+Al2O3+TiCN+TiN | Body Material | Carbide |
| Grade | IC8150 | Unit | M |
| Fixing Hole Diameter (D1) | 3.81 mm |
Product Features

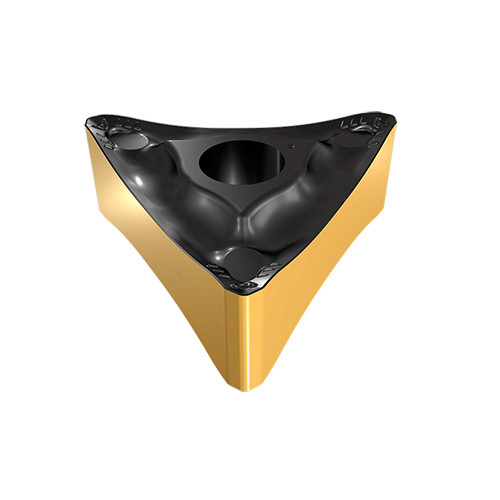

| Family Description | The insert has a very positive radial, helical cutting edge and a positive rake angle, which reduces the cutting forces. A wiper corner design produces a high surface finish even at high feed rates. Used for heavy machining applications. | FamilyName | TNMX-M3/4PW |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0070
Name
Turning Indexable Inserts
FamilyName
TNMX-M3/4PW
BrandName
Iscar
